144/28 MHz High Dynamic Transverter
Board to Flex radios.

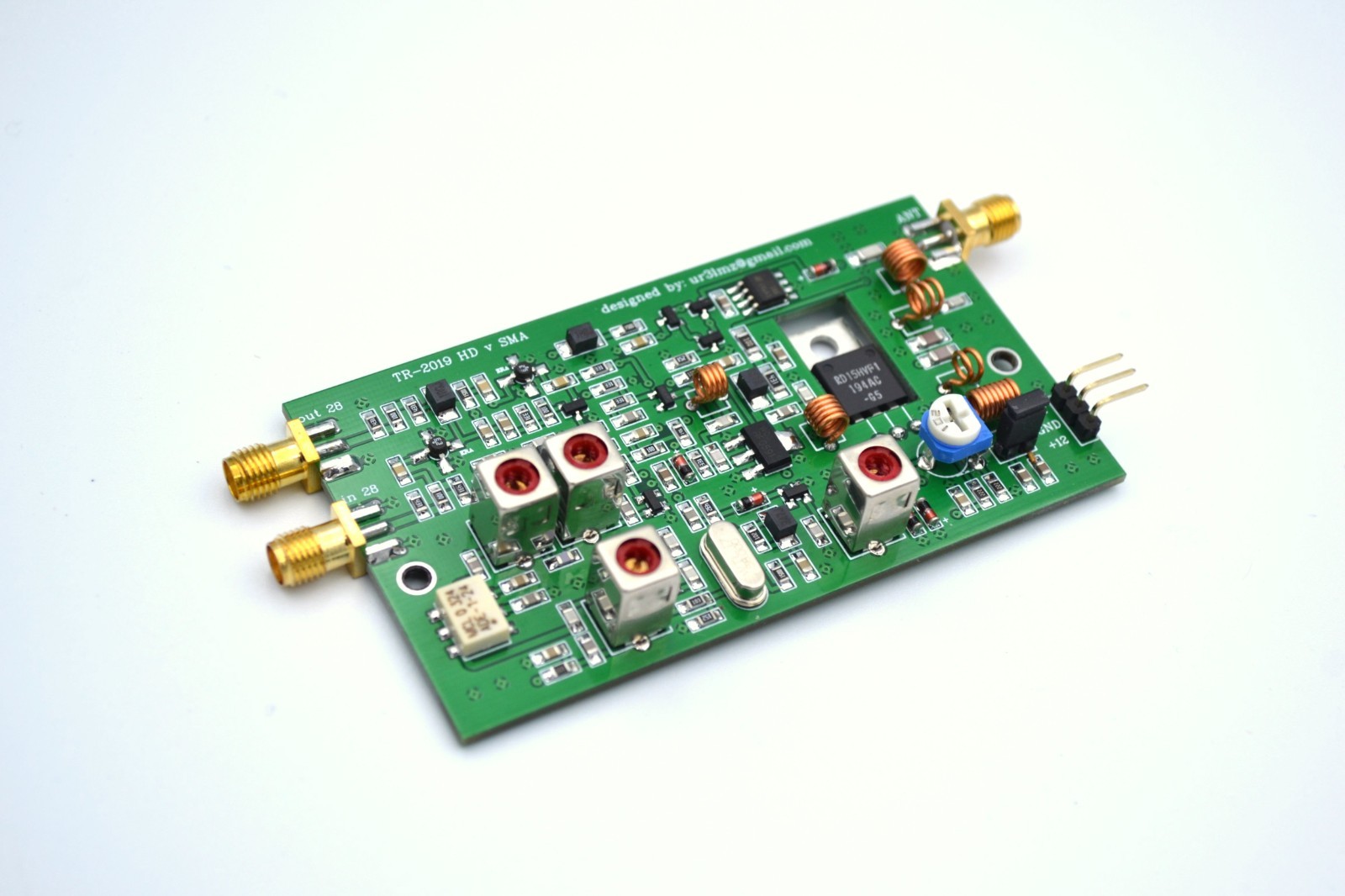

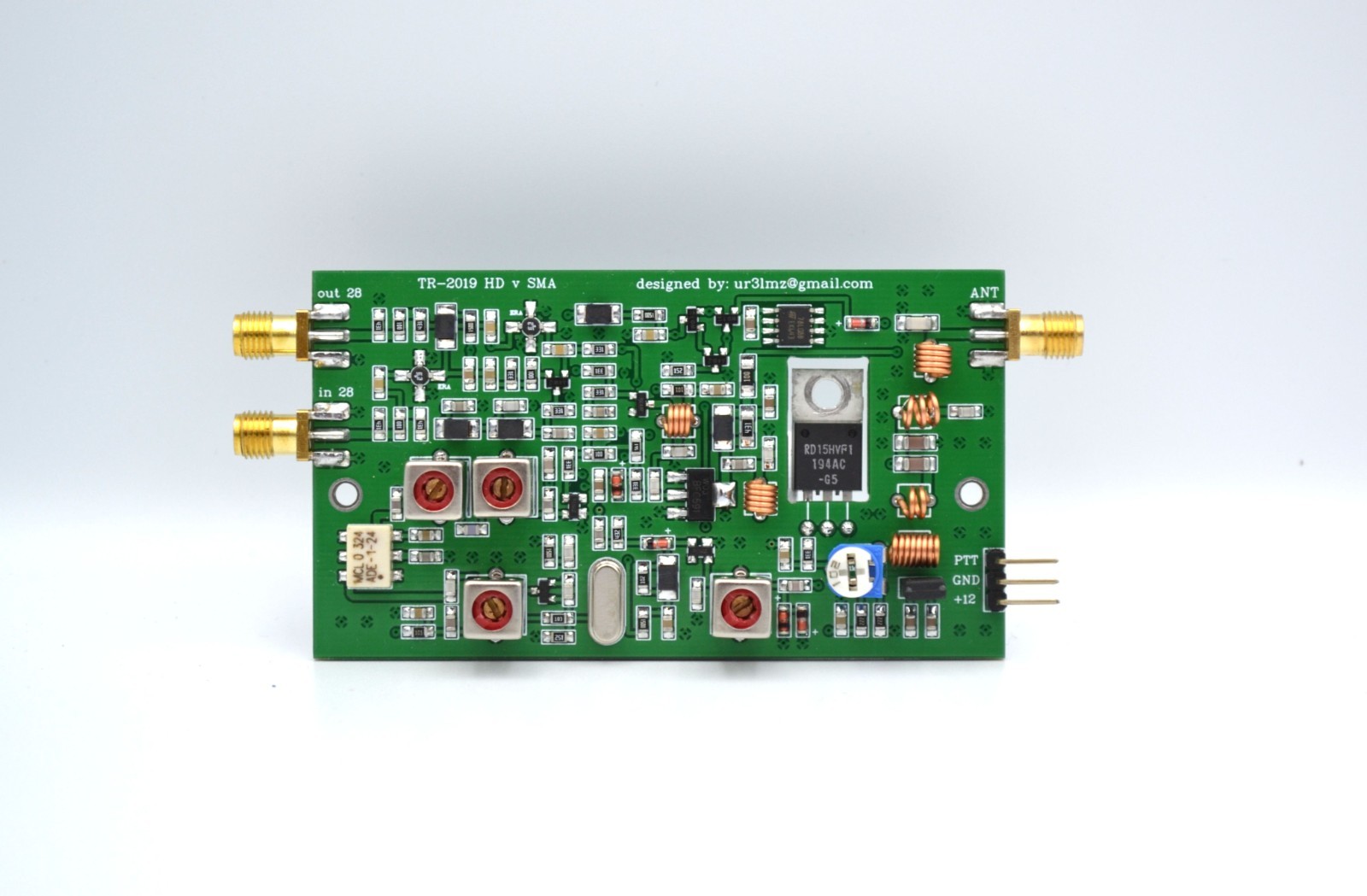

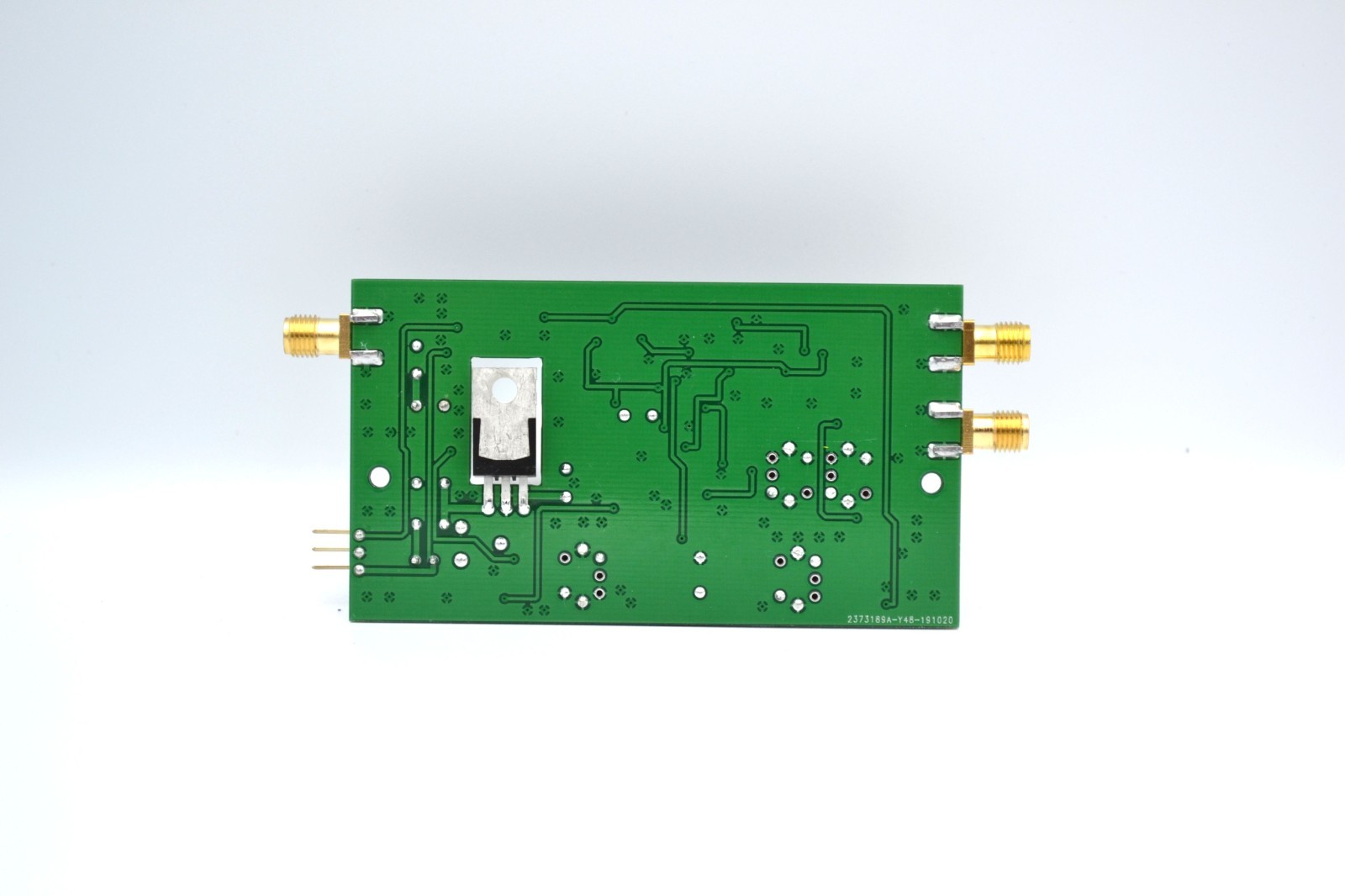

UR3LMZ transverter for FLEX radios. We specially designed this transverter for easy connection to Flex radio, SDR and other similar radios. You only need a couple of cables to connect to your radio and you can work on VHF with all kinds of modulation. It is specially developed for severe conditions of reception – contests, DXing, the neighboring powerful broadcasting and amateur stations. The mixer is made on special HI-frequency ADE chip with whopping dynamic range IP3 + 17dBm typ. We made some improvements, improved the circuit, and now the board has an output power of 15 watts !!
We are
offering completely built and tested in UR3LMZ lab board that comes with the

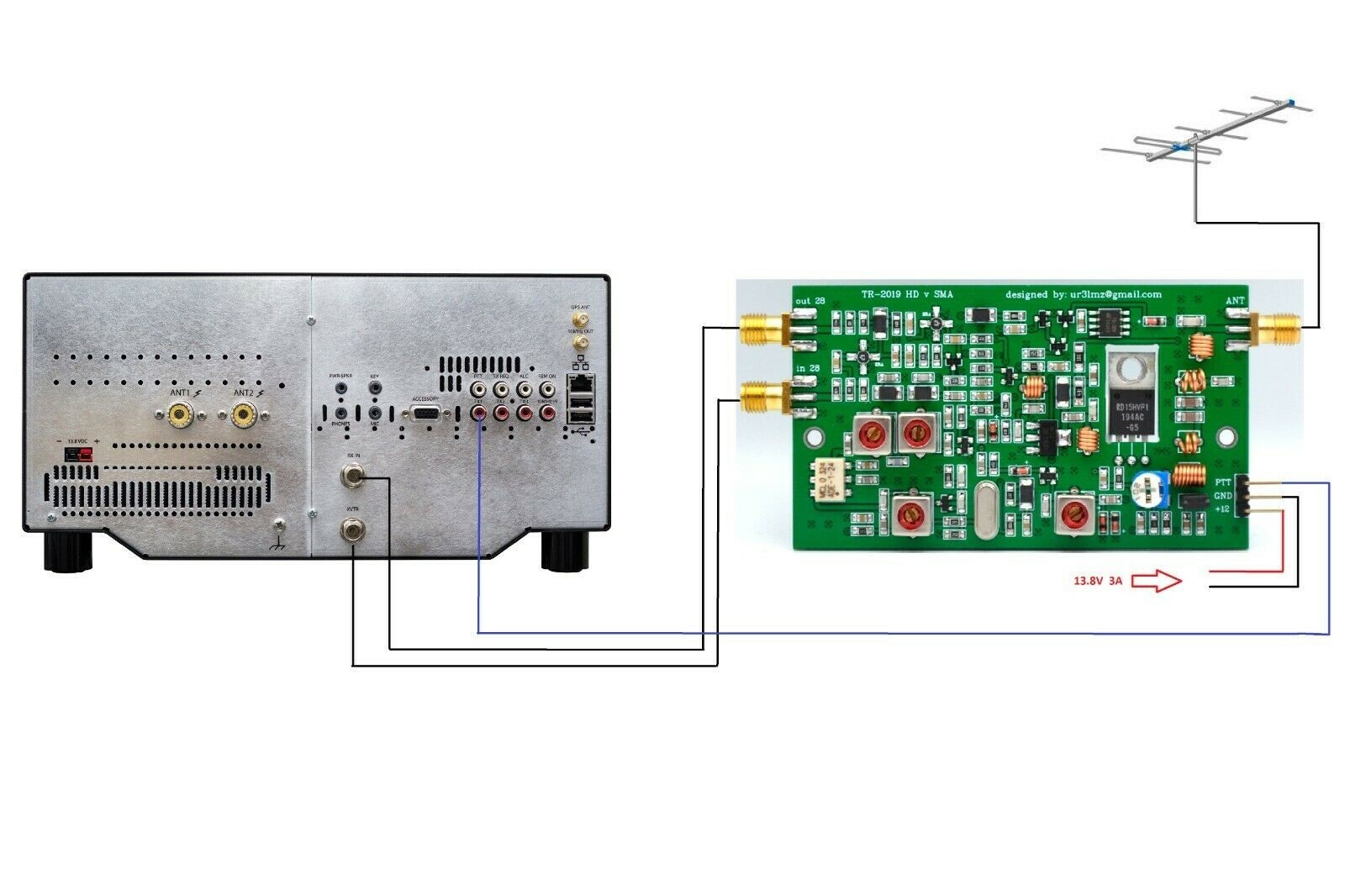

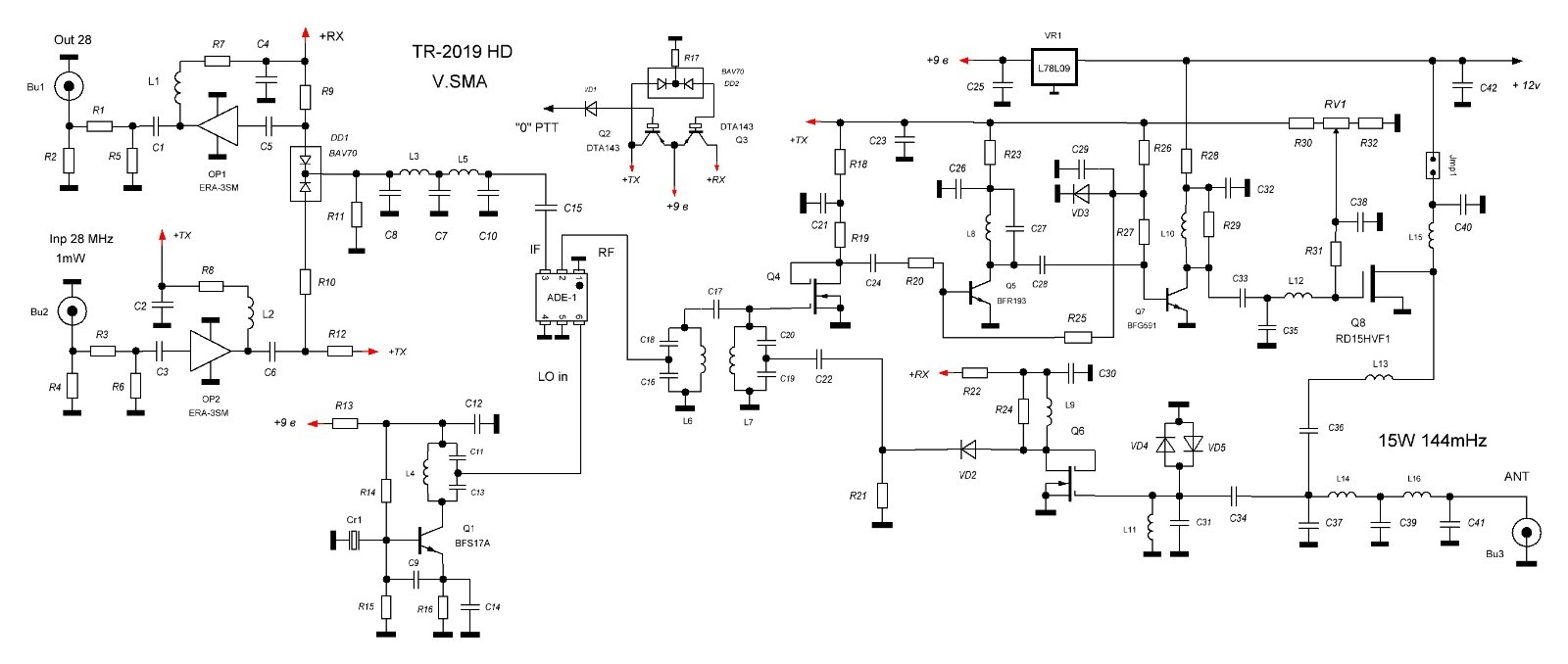

English description which contains the circuit diagram of this transverter and diagram of how you can connect to your Flex.
Technical
specifications
| RF range | 144 … 148 MHz |
| IF range | 28 … 32 MHz |
| IF input power | 1 mW / 0 dBm |
| LO frequency | 116 MHz |
| LO frequency stability | +/- 3 ppm |
| Output power | 15 W |
| RX gain | typ. 20 dB |
| Noise figure | typ. 1.0 dB |
| Image rejection | typ. 70 dB |
| PTT control | Contact closure to ground |
| Supply voltage | +13.8 V DC (+12 … 14 V DC) |
| Current consumption | typ. 2 A (TX) |
| TX Output transistor | RD15HVF1 |
| RX Input chip | ADE |
| Dynamic range IP3 + 17dBm typ. | |
| Dimensions (mm) | 90 x 50 (3.55 х 2 in) |
| RF sockets type | SMA |
some soldering works with a cables, wires and connectors. Probably some instruments
would be required. Does not include heatsink, power and
RF connectors, wires or cables.
If you were
not satisfied with the transverter board then you ship it back and we refund
your money.
