432 to 28MHz Highly Stable 10Mhz input HD Transverter FT8 VHF UHF 5W 70cm

432MHz to 21 or 28 MHz Transverter

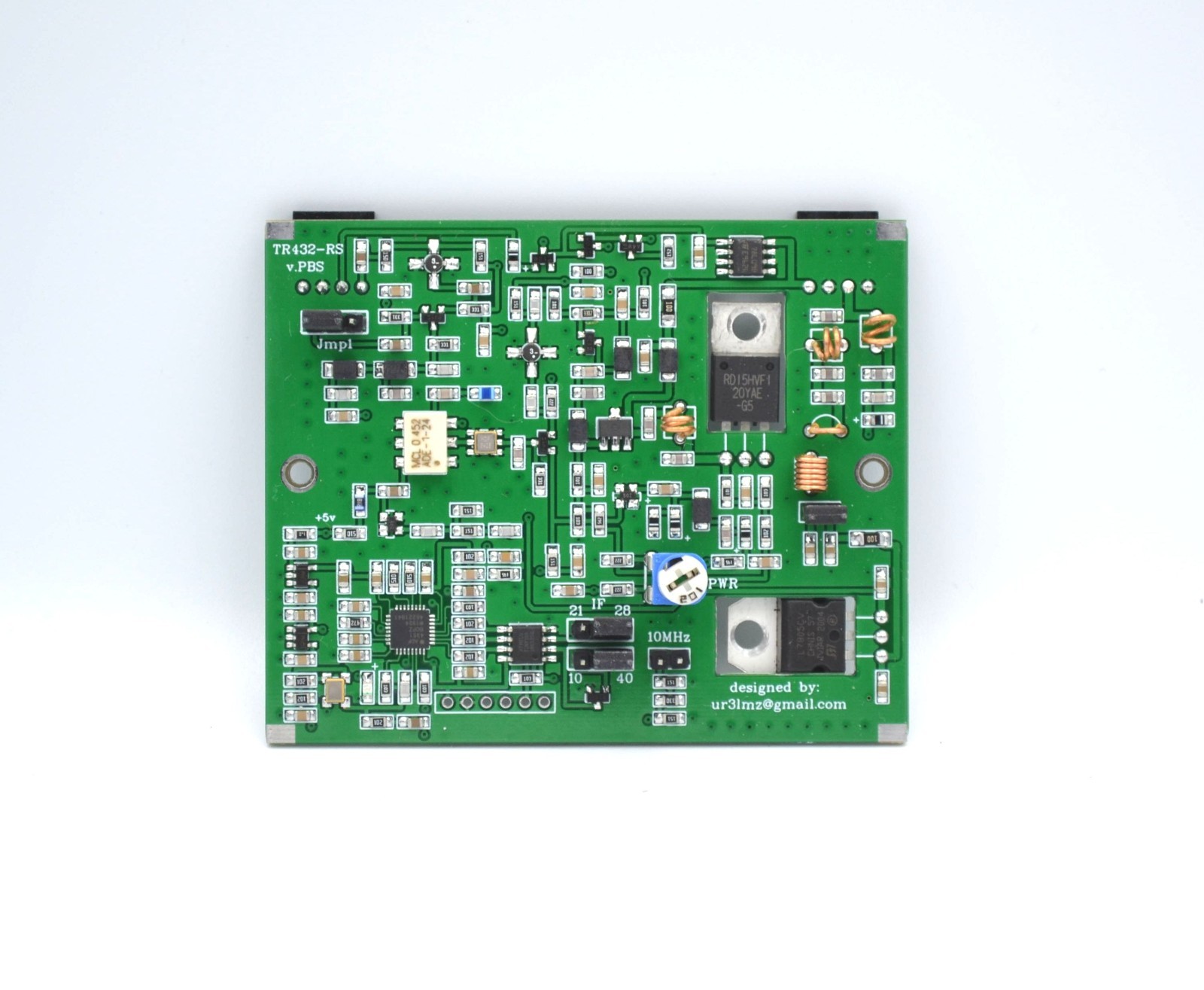

Board with High Dynamic Range and high frequency stability.

 UR3LMZ transverter with highly stable frequency synthesizer. This allowed us to obtain a long-term stability of 0.2 ppm and to extend the operating range of the transverter 425 – 442 MHz  with your HF radio frequency 21 – 32 MHz. This model has 2 LO frequencies that can be easily switched using jumpers on the transverter board – 404 and 410 MHz. This allows you to use HF radio with frequencies 21 to 28 MHz. High frequency stability allows you to work in FM, SSB, CW and even digital modes FT8 JT65 and etc.

In this transverter model we have added an additional input for external frequency synchronization. If you need very high frequency stability, you can feed a highly stable 10 MHz frequency to a dedicated transverter input. In this case, the stability of the frequency of the transverter board will be determined by the stability of the external 10 MHz generator.

This transverter board specially developed for severe conditions of reception – contests, DXing, the neighboring powerful broadcasting and amateur stations. The mixer is made on special HI-frequency ADE chip with whopping dynamic range IP3 + 17dBm typ.

We are
offering completely built and tested in UR3LMZ lab board that comes with the

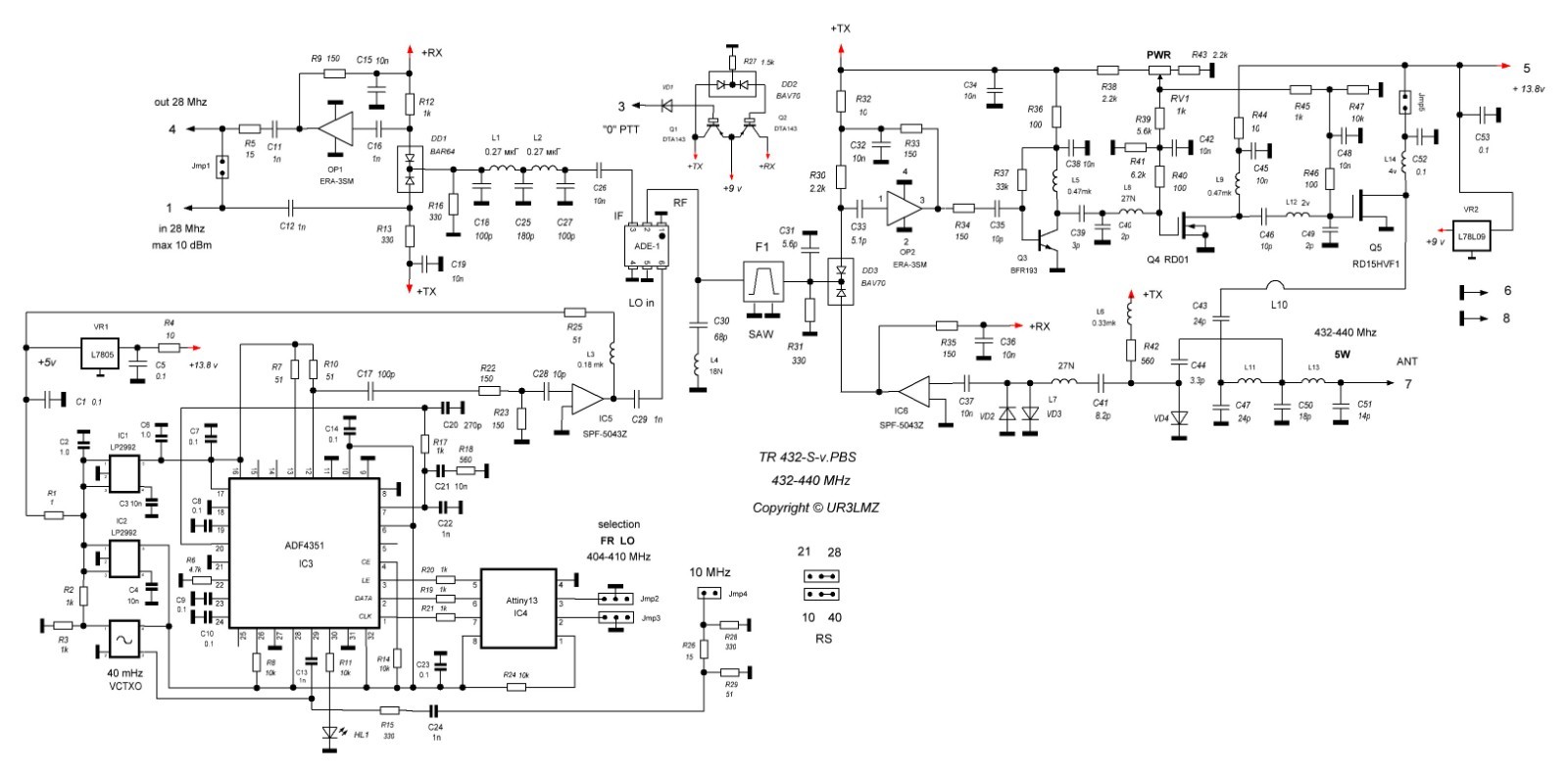

English description which contains the circuit diagram of this transverter and
circuit of a simple attenuator board.

This sale
includes the completely built, tuned and tested transverter board with its

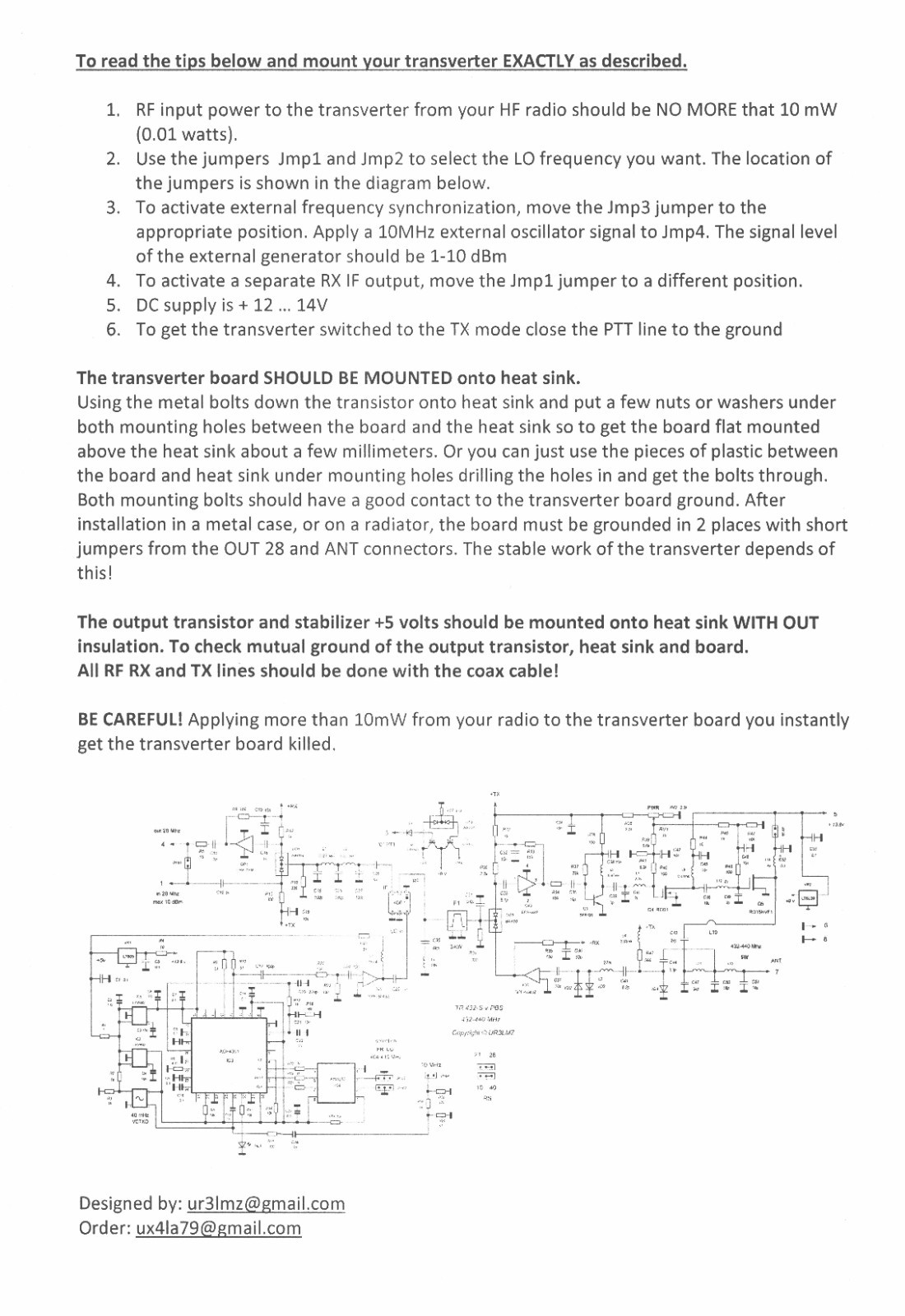

schematic diagram and a diagram of a possible connection of this transverter
board to your HF radio.

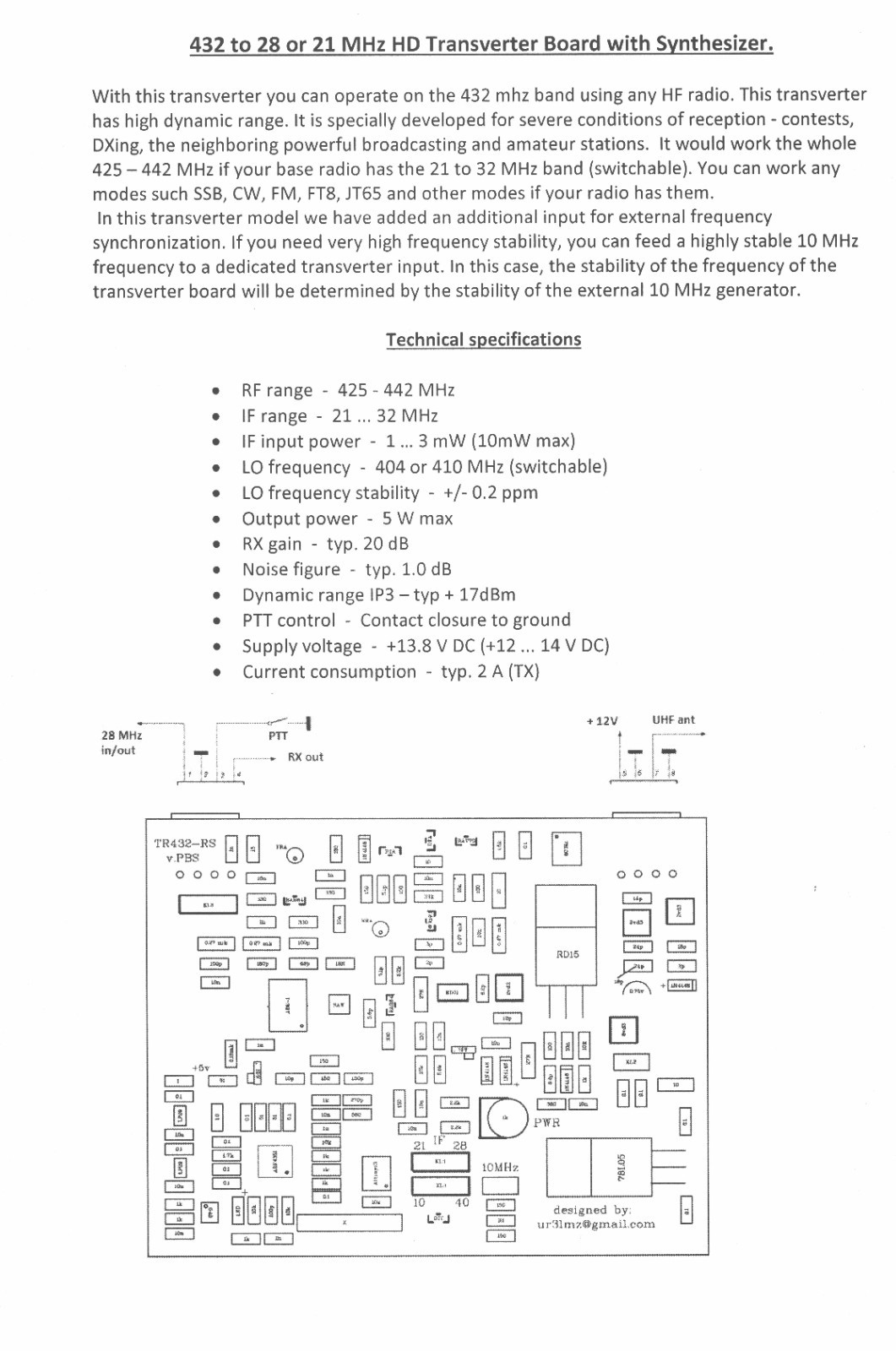

Technical
specifications
