270/28 MHz AssembledTransverter to Flex radios.

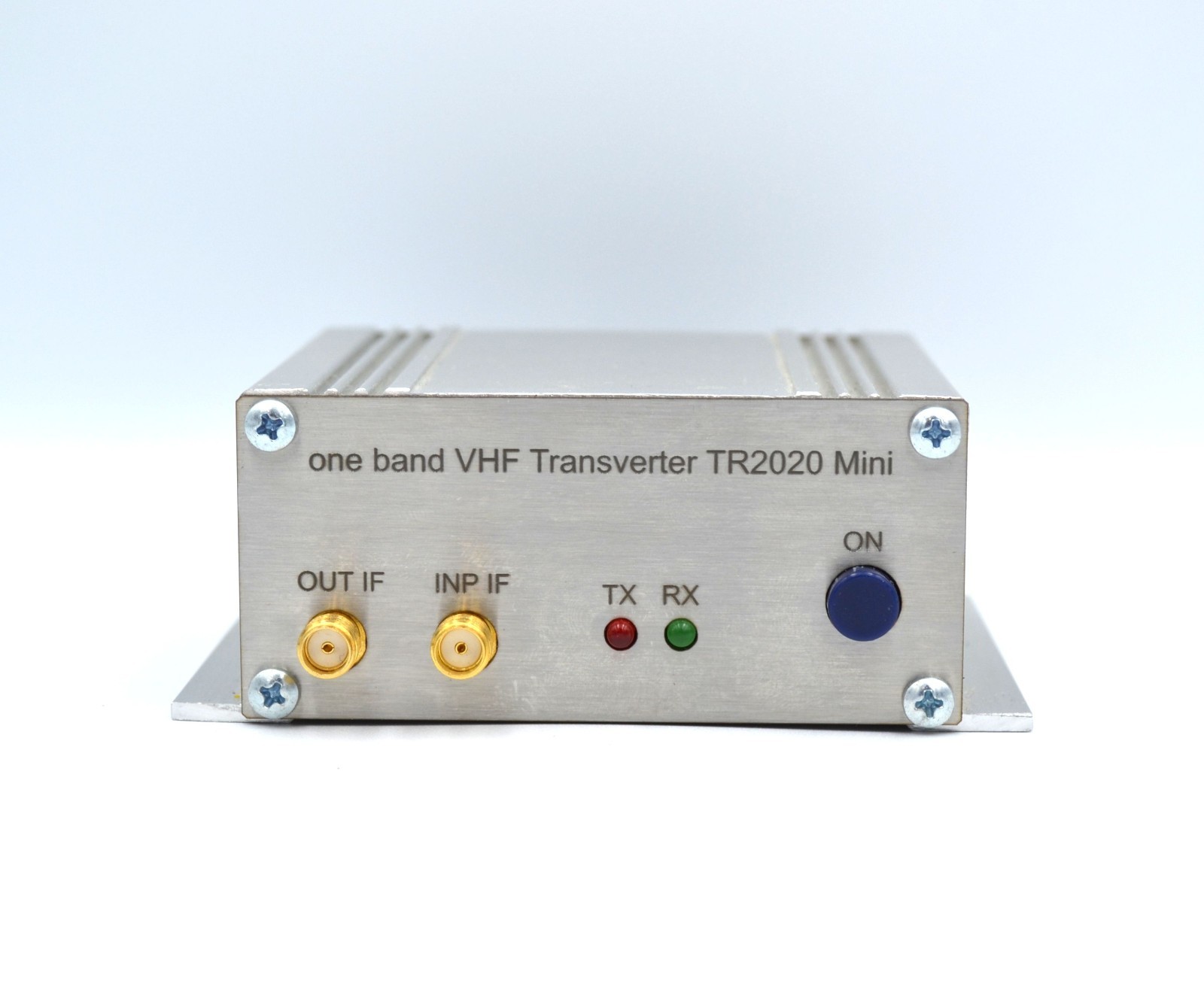

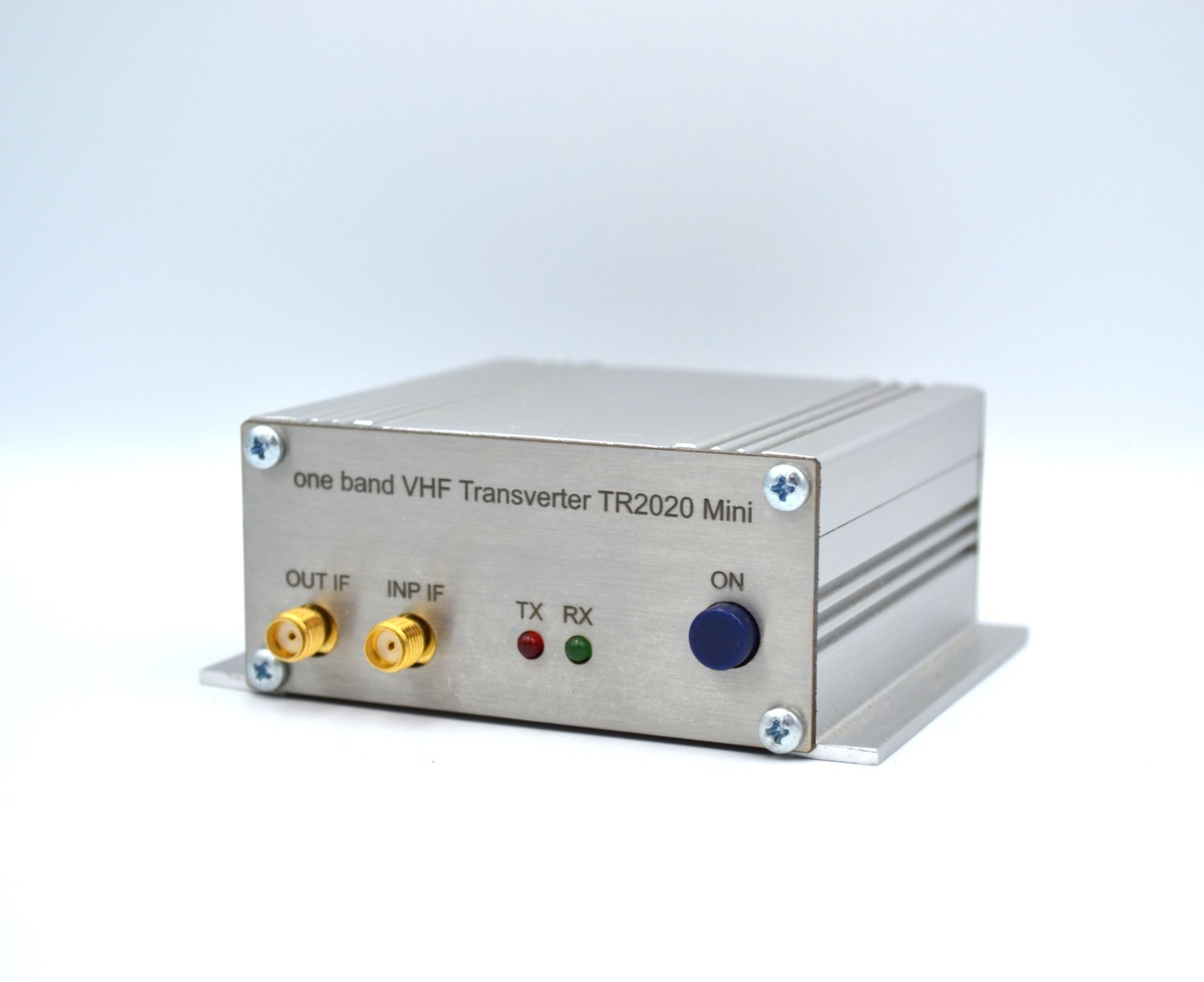

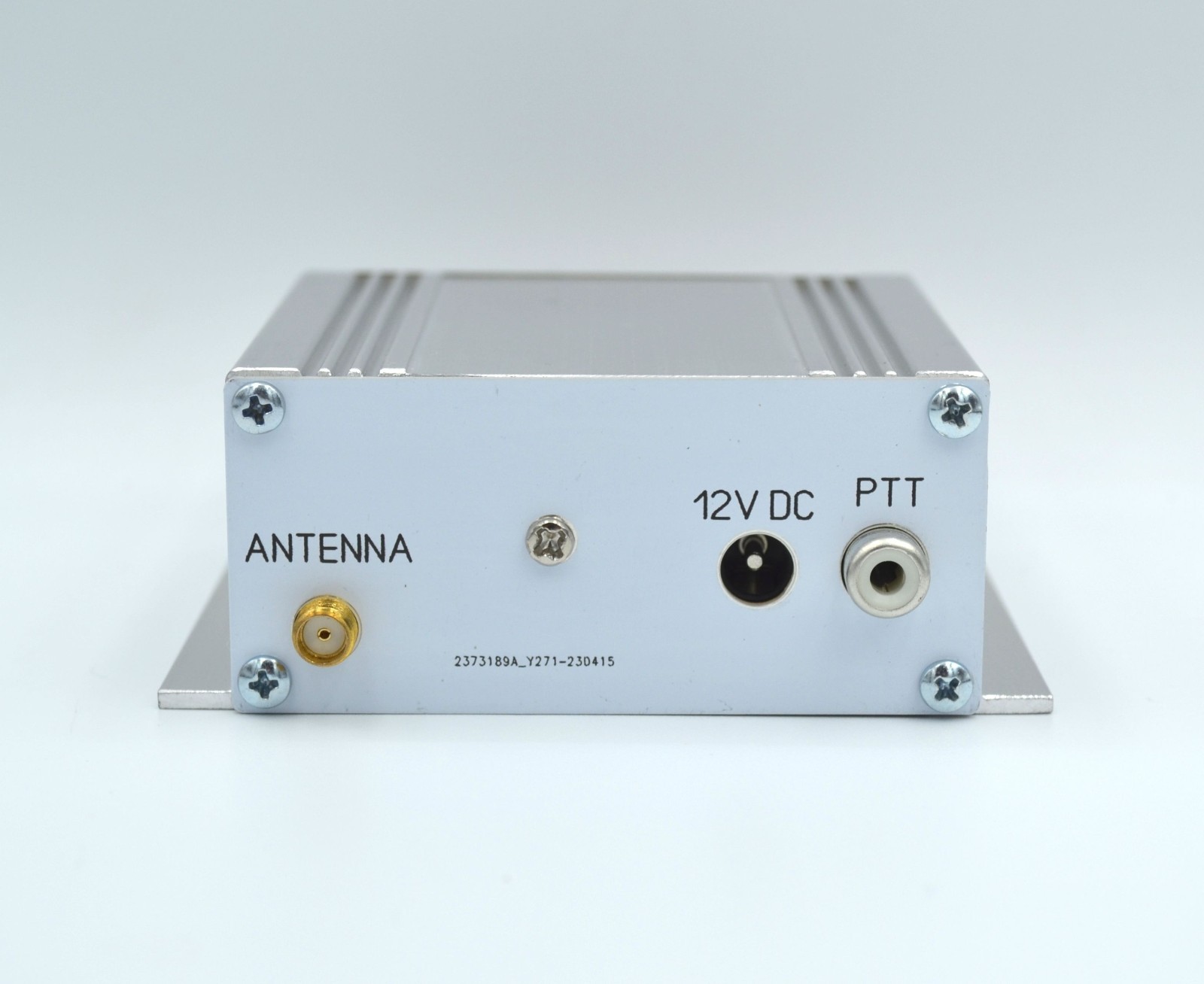

UR3LMZ TR2020 Mini transverter for FLEX radios. We specially designed this transverter for easy connection to Flex radio, SDR and other similar radios. You only need a couple of cables to connect to your radio and you can work on VHF with all kinds of modulation. It is specially developed as low cost and easy to use transverter. We want the VHF band to be as accessible as possible to everyone. We made some improvements, improved the circuit, and now the transverter has an output power of 12 watts on VHF.
Small sizes 75 x 85 x 35mm (2.95 х 3.35 x 1.35 in) will allow you to successfully use the transverter in remote places – near the antenna in a sealed box, in the attic of your home or just on the top shelf.
We are
offering completely built and tested in UR3LMZ lab assembled transverter that comes with the

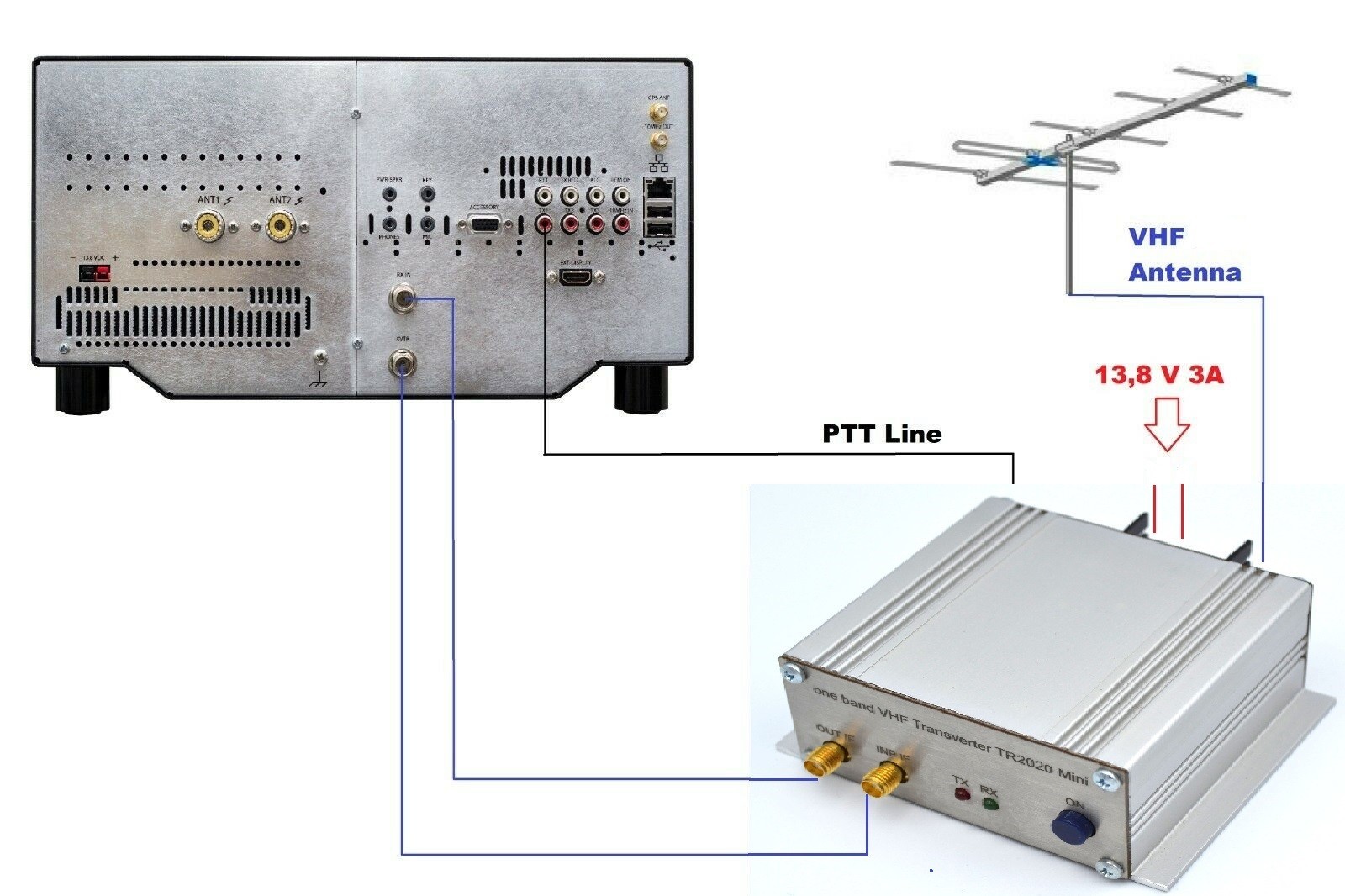

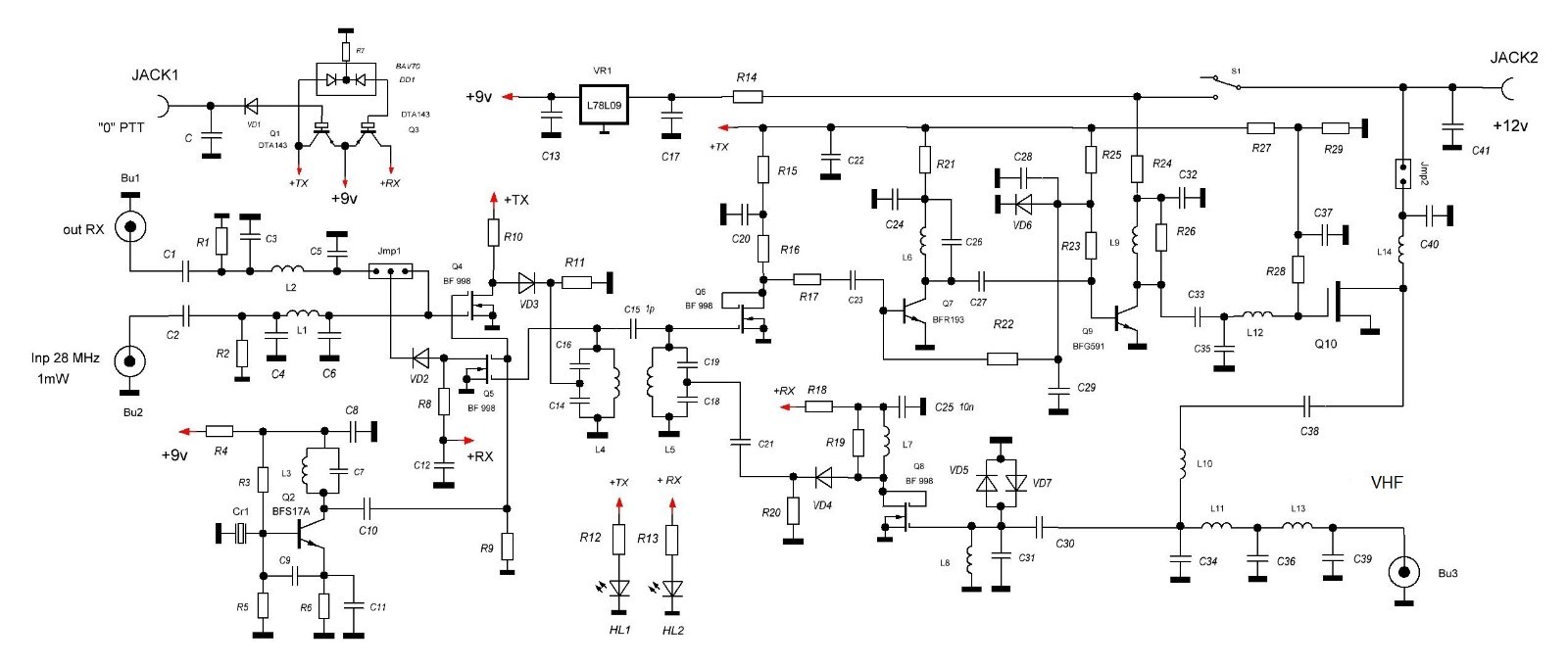

English description which contains the circuit diagram of this transverter and diagram of how you can connect to your Flex.
Technical
specifications
| RF range | 70 … 74 MHz |
| IF range | 28 … 32 MHz |
| IF input power | 1 mW / 0 dBm |
| LO frequency | 42 MHz |
| LO frequency stability | +/- 3 ppm |
| Output power | 12 W |
| RX gain | typ. 20 dB |
| Noise figure | typ. 1.0 dB |
| Image rejection | typ. 70 dB |
| PTT control | Contact closure to ground |
| Supply voltage | +13.8 V DC (+12 … 14 V DC) |
| Current consumption | typ. 3 A (TX) |
| TX Output transistor | RD16HHF1 |
| Dimensions (mm) | 75 x 85 x 35mm (2.95 х 3.35 x 1.35 in) |
| RF sockets type | SMA |
If you were
not satisfied with the transverter then you ship it back and we refund
your money.
