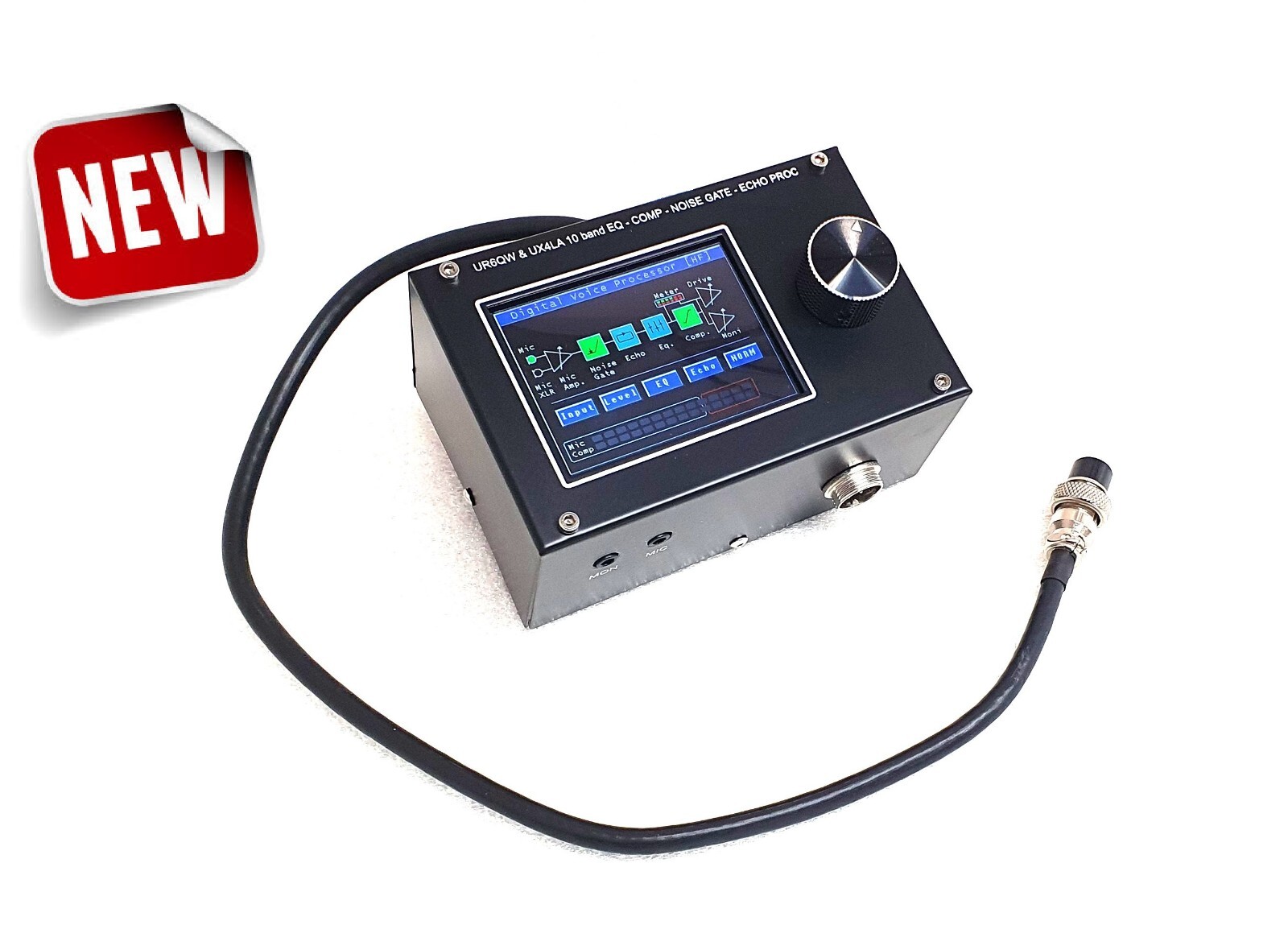

10 Band V7 PRO version Full Digital Sound Equalizer – Noise Gate – Echo – Roger – Compressor with Phantom Power 48V inside to Cobra Galaxy Uniden Magnum General Connex President and many other CB Radios with 4pin mic connector
UR6QW EQ V.7 Super clear Studio sound for your TRX! – YouTube
Main differences between V7 PRO and V7 versions:
- New 5-point touchscreen calibrator (ensures more accurate touchscreen operation)
- Completely independent parameter sets for 4 various microphones type. The following parameters can be configured independently: Gain/Gate/Comp/Drive/Monitor/Echo/Delay/Roger/Norm-DX-Bypass
- More natural smoother level and compression meters
- The enabled block in the signal chain highlighten in color in the block diagram
- Echo delay time increased to 150ms
- Stulish metal knob and metallic screws
For this EQ we used the most advanced sound processing technologies – Full Digital system, a special balanced low-noise amplifier so that the sound quality would satisfy the most demanding customer. For ease of operation, the EQ has a color touch screen display. Especially for connoisseurs of high-quality sound and ESSB, this unit has XLR microphone input with 48V phantom power. If your XLR mic doesn’t need 48 volts, you can easily turn that off. Now you can be sure of the superior sound quality of your radio.

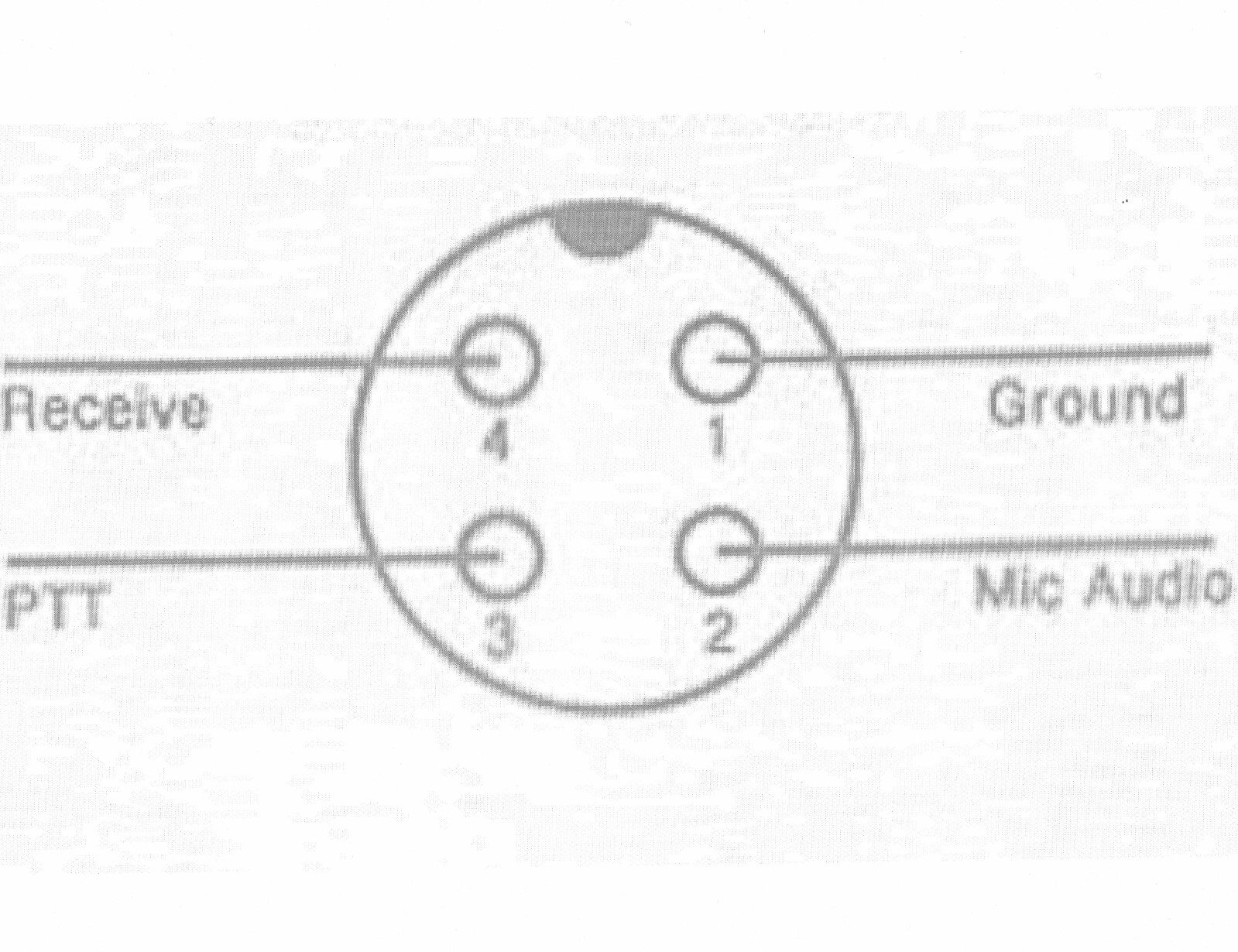

This EQ can be used with any type of CB radios with 4 pin round microphone connector. Easy to use – just connect this unit to the 4 pin mic connector on your CB radio, give a supply from 5 volts and it is ready to work.
10 Band EQ – allows you to adjust the sound to your taste
Noise Gate – background noise when you stop speaking eliminates – no more amplifier fan noise, dogs barking, kids music or traffic.
Roger Beep – will give your signal recognition and make your work on the air more comfortable.
Ehco function – makes your signal more beautiful
Monitor – you can adjust the EQ even if your transceiver does not have a monitor function.
Compressor – will improve productivity when working in a pile-up
Technical data:
Full Digital system
Microphone balanced low-noise amplifier.
Echo prosessor with regulation of delay.

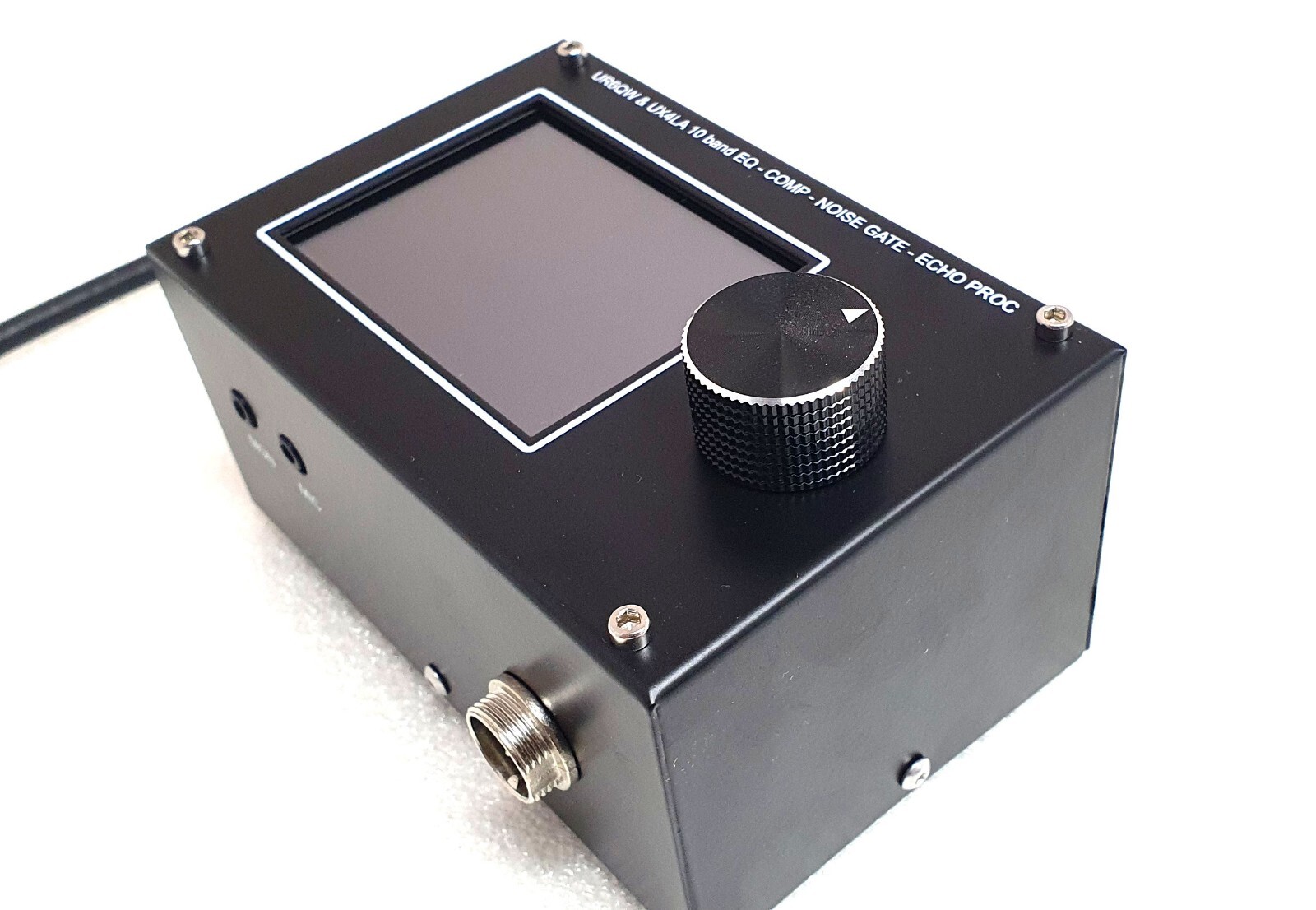

Slanted front panel for more comfortable operation with it.
Voice 10 band Equalizer with pots on 90 / 150 / 220 / 350 / 500 / 800 /1300 / 2000 / 2900 / 4500 Hz.
Strong steel case – reliable protection against external noises.
Good workig with HIGH OUTPUT POWER up to 2kWt.
Working UP DOWN control of the radio by Mic’s knobs.

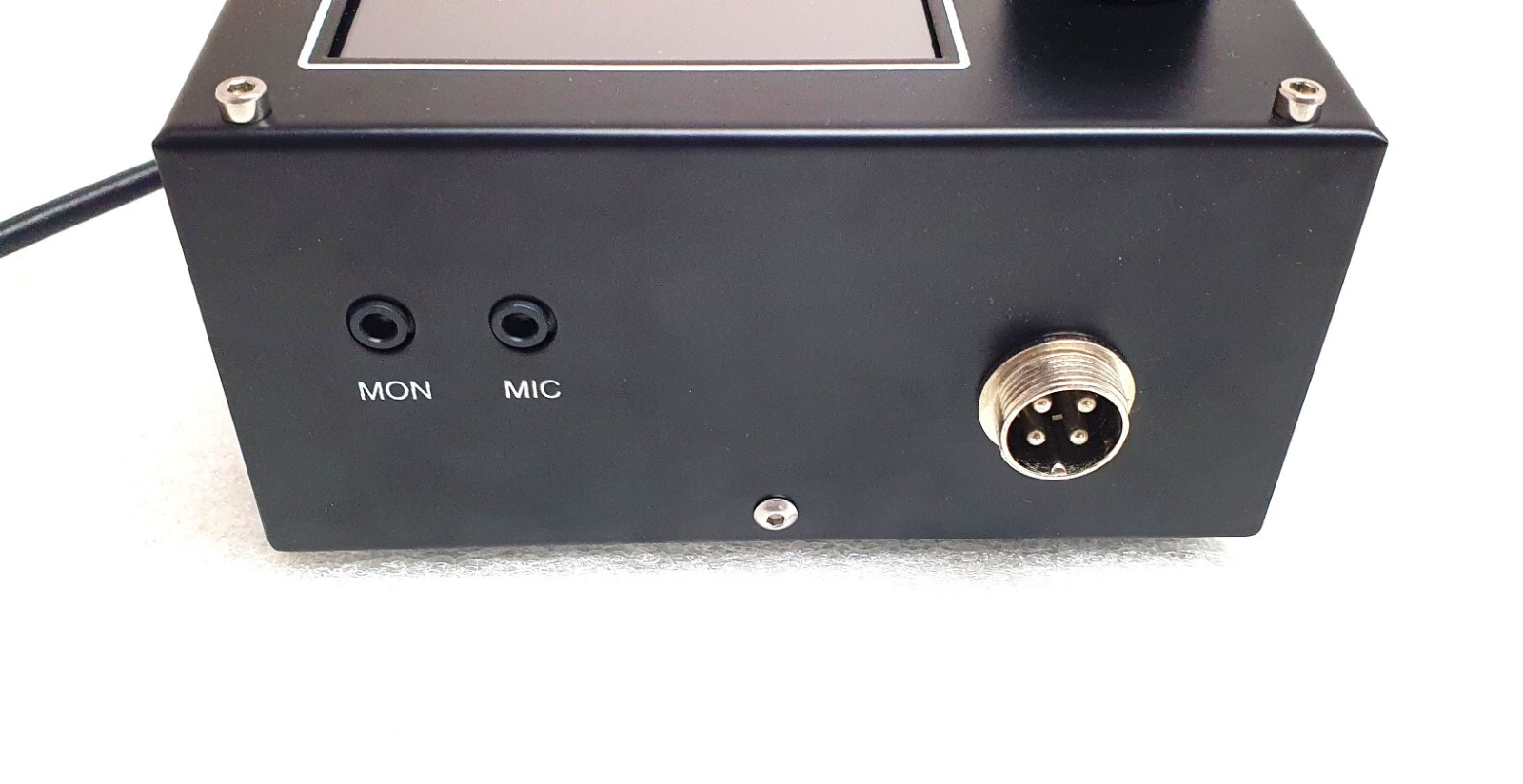

Has add mic input MINI-JACK for easy use of computer typeface, HEIL microphones and etc.

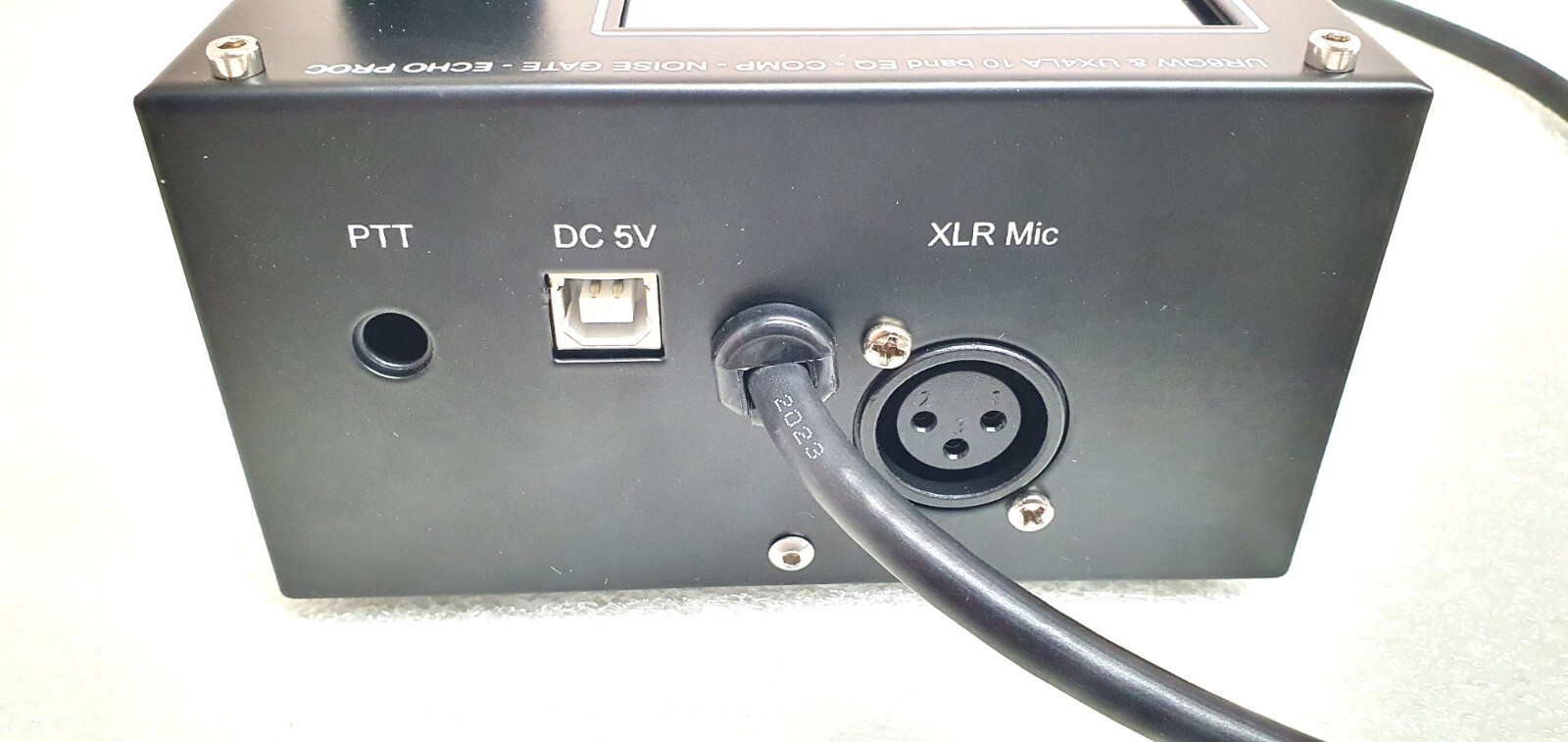

Separate mic XLR input
Switchable 48 volt phantom power supply inside
Special socket for footswitch – 6.3mm jack
Sockets for Monitor – minijack
Compressor function with 0 to 40 db
Roger beep function
Size 120 mm x 80 mm x 55 mm (4.73 x 3.15 x 2.17 in)
Weight – 0.45 kg (1 lb)
Length of a power cord with 4 pin connector is 50 cm (20 in)
