144 to 28 MHz High Dynamic Transverter.
UR3LMZ – transverter with high dynamic range. It is specially developed for severe conditions of reception – contests, DXing, the neighboring powerful broadcasting and amateur stations. The mixer is made on special HI-frequency ADE-12 chip with whopping dynamic range IP3 + 17dBm typ.
With this transverter you can operate on the 144 mhz band using any type of the HF radio at 28 mhz.
It is transverter completely ready to operation, you don’t have need something to solder and to complete.

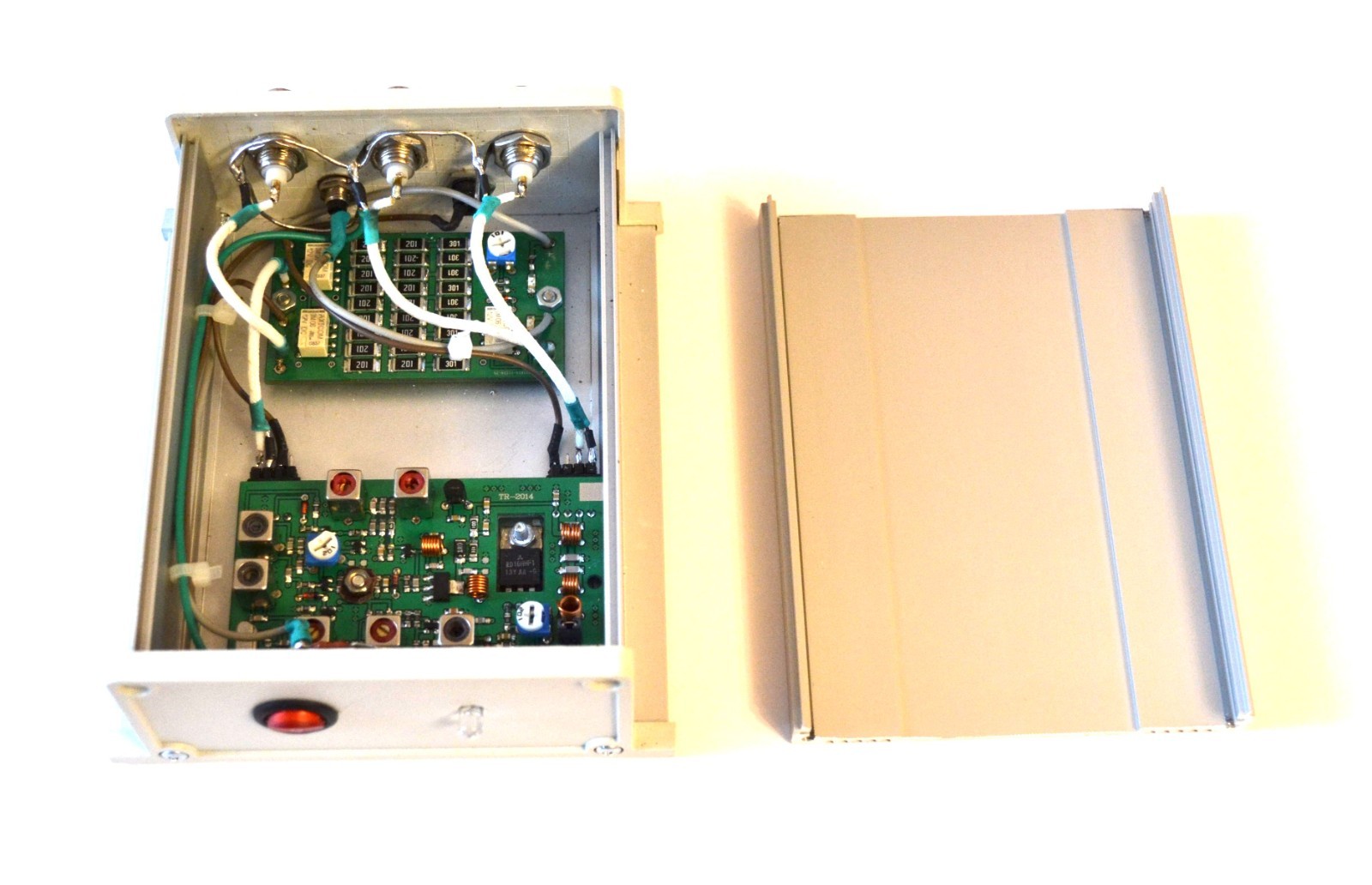

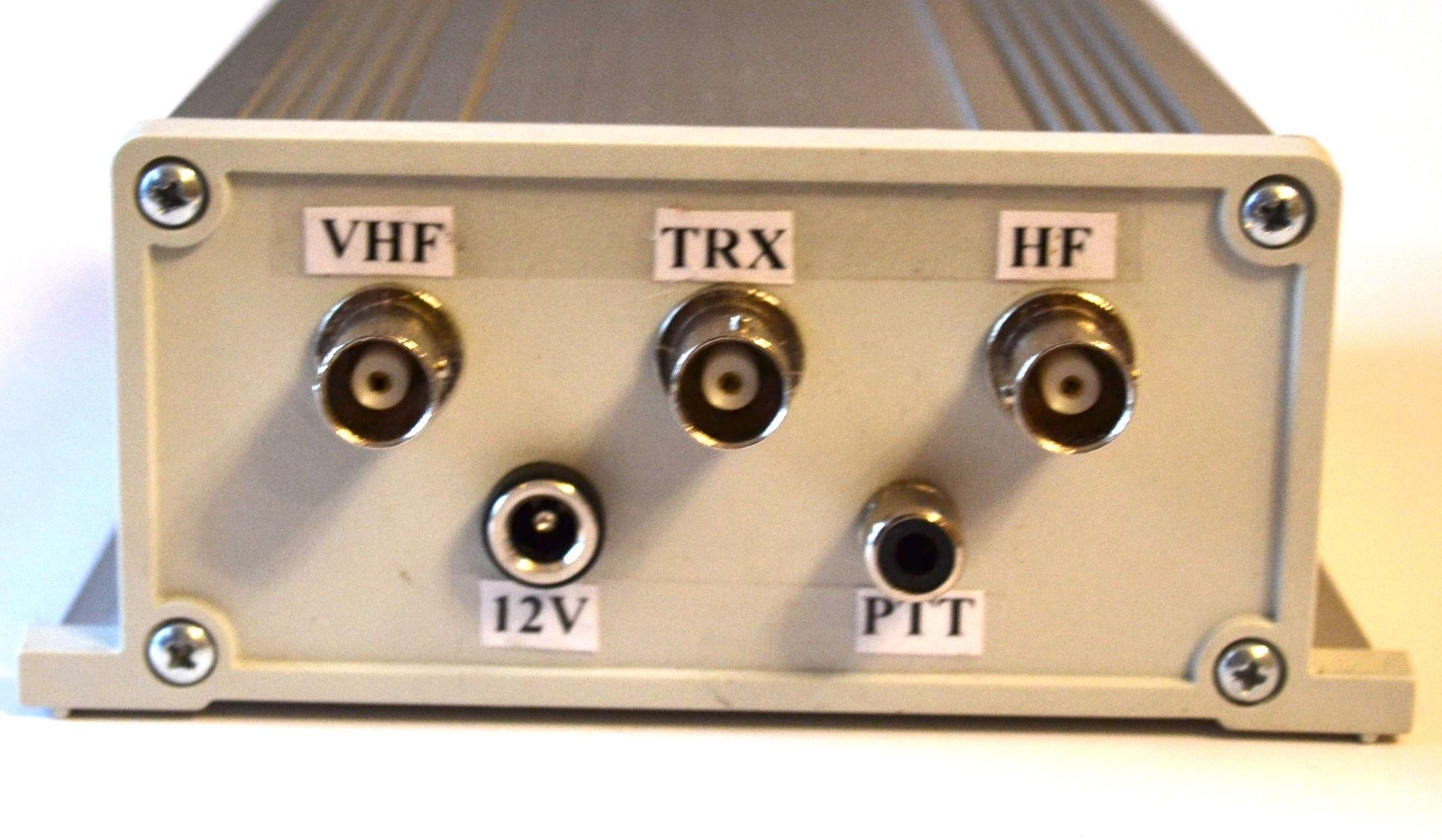

Easy to use!!! It is easily joined to any transceiver. Just connect this transverter to the ANT and PTT connector on your radio, and then connect HF and VHF antennas.
It isn’t necessary to do any switchings!!!

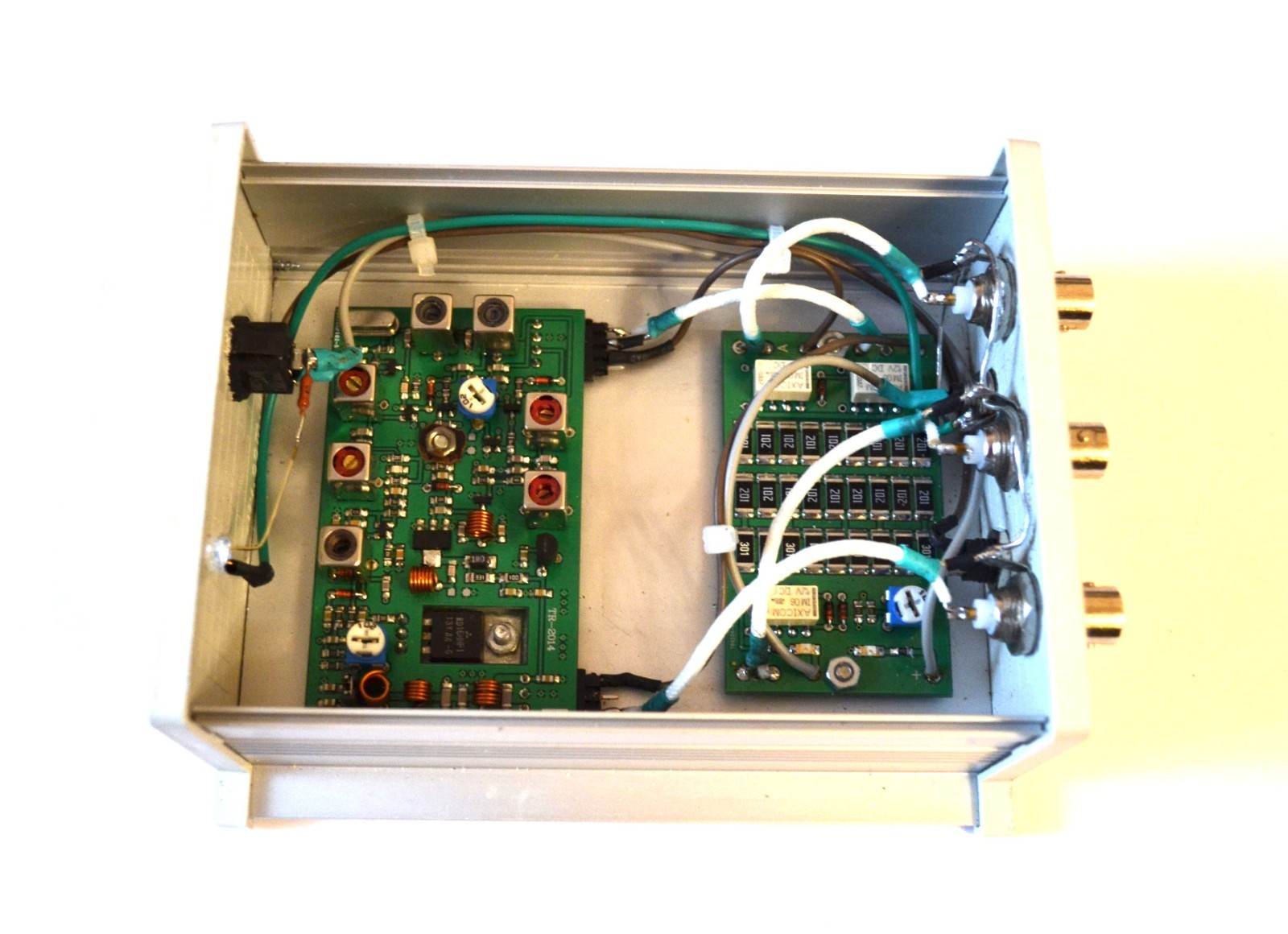

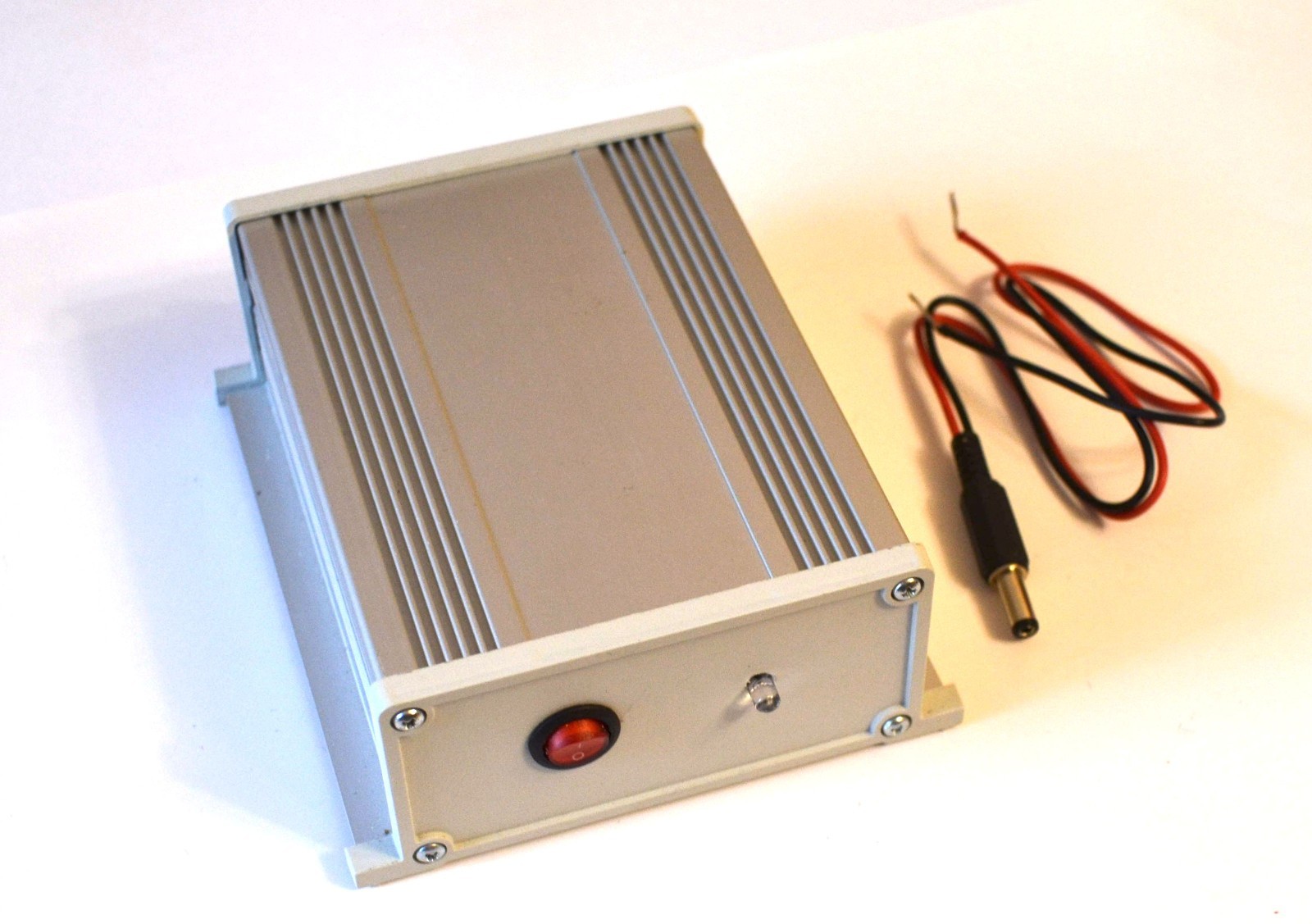

Just power on transverter the tumbler on its front panel – you in VHF band.
Switch off a transverter – you on HF again.
This item very nice working with SDR and FLEX radios with a spectrum Waterfall.
Complete with tested and adjusted in laboratory the transverted has the english description which contains the circuit of the transverter.

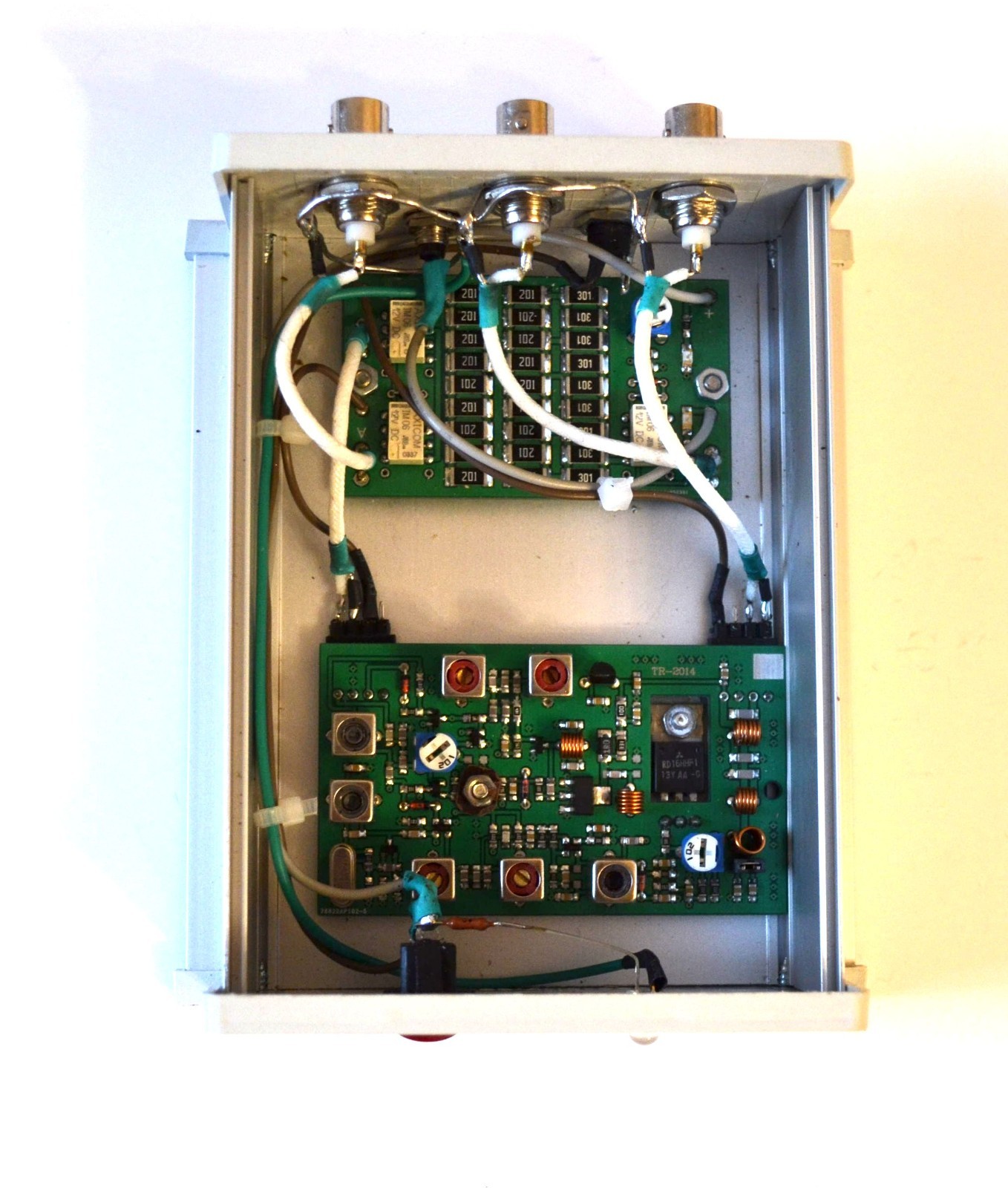

Information about this transverter:
RF range 144 … 148MHz
IF range 28 … 32MHz
DC current is 12V to 14V.
Current consumption 2A (TX)
LO freq is 116MHz
LO freq stability +/- 3ppm
IF RF input power on 28mhz is 10Wt
TX Output transistor is RD15HVF1
The Output power on 144 mhz is about 10 to 15W
Max power in bypass mode 100Wt (on HF).
RX Input transistor is BF998
RX gain 20dB
Dynamic range IP3 +17dBm typ
Noise figure 1.0dB
Image regection 70dB
PTT to the ground.
Size of the transverter is 14cm x 5cm x 10cm
* color covers of casing can differ from show on a photo
I am testing the transveters before putting them in a shipping box. If you would not be satisfied with the transverter then you ship it back and I refund your money.
