This unit can be used with any type of ICOM radios with RJ-45 microphone connector. There is NO battery or power supply needed to feed this device. This unit take energy from you radio thru the mic connector.
Easy to use!!! Just connect this Sound Processor to the RJ-45 mic connector on your radio and then connect the standard ICOM microphone to this unit and it is ready to work. Then turning the pots on its panel just get an excellent quality of your signal. To use the compressor pot in DX pile ups.
WATCH OUT OF FORGERY!!!!
Only the original product against the developer and the producer of UR6QW guarantees high-quality work.
Technical data:
Microphone low noise amplifier with input and output level pots.

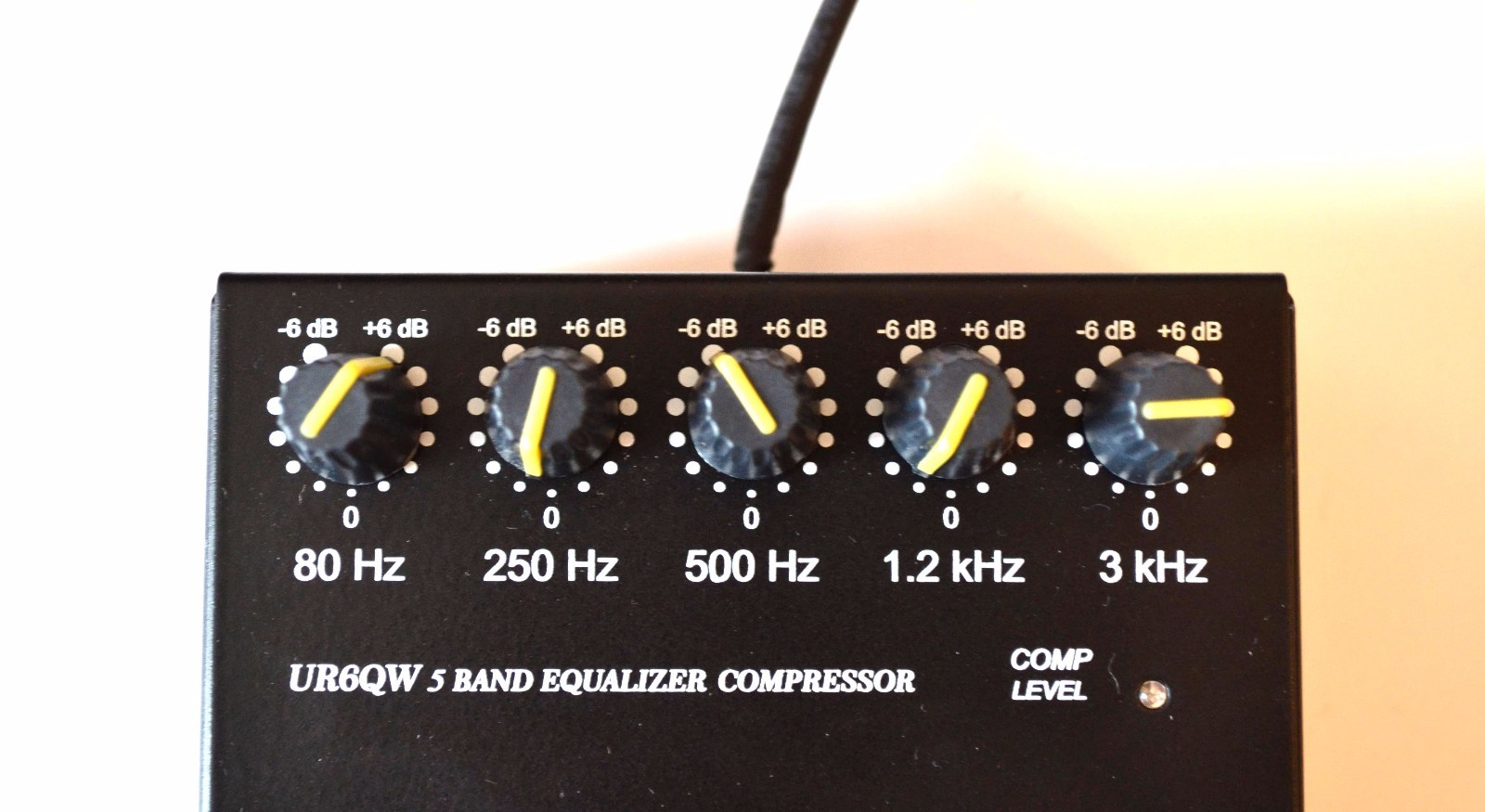

Voice 5 band Equalizer with pots on 80 / 250 / 500 / 1200 / 3000 Hz.
Strong steel case – reliable protection against external noises.
Good workig with HIGH OUTPUT POWER up to 2kWt.
Now working UP DOWN control of the radio by Mic’s knobs.
Has add mic input MINI-JACK for easy use of computer typeface, HEIL microphones and etc.
Compression level led

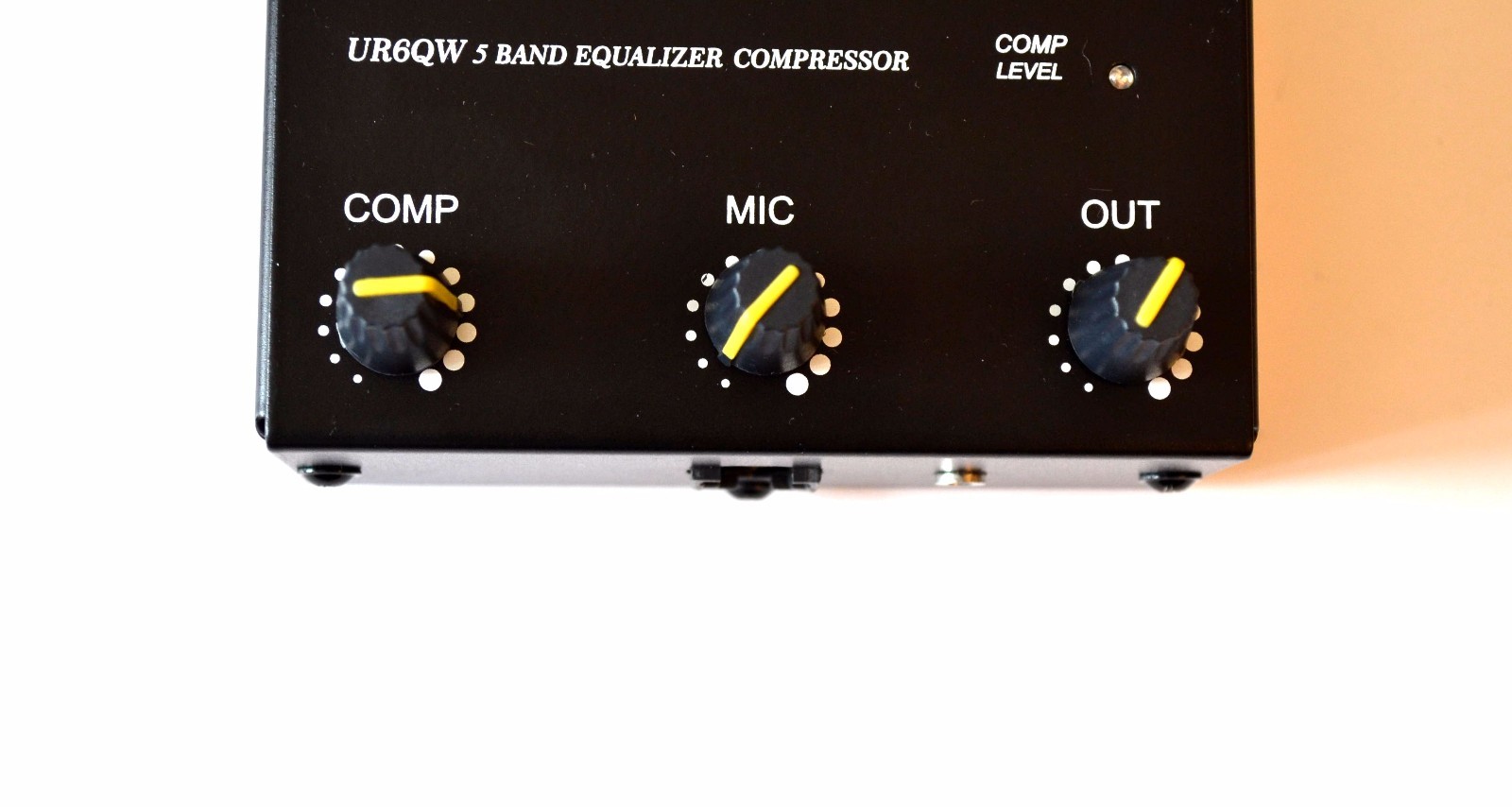

Microphone Compressor level pot
Size 110 mm x 85 mm x 45 mm
Weight – 0.38 kg

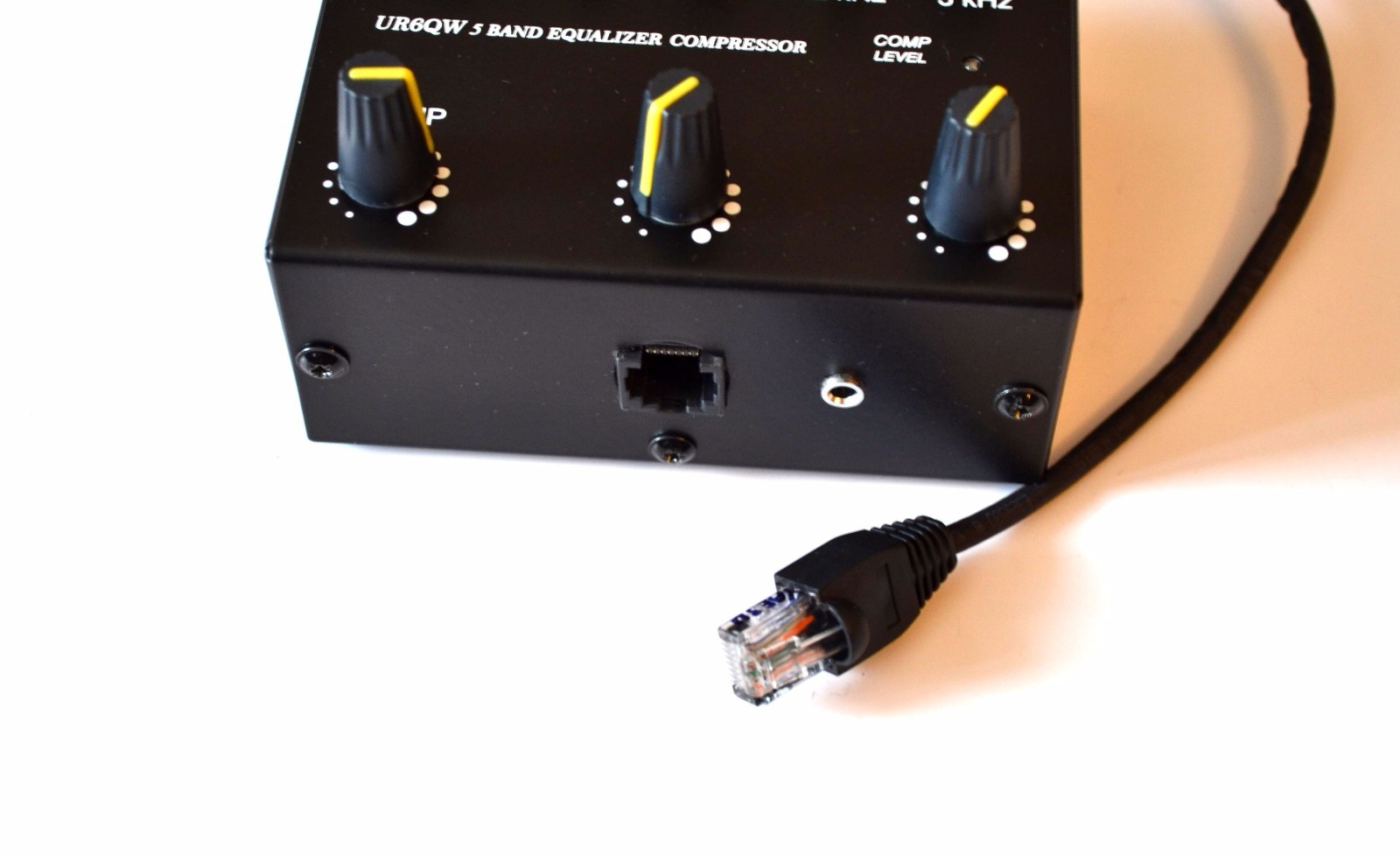

Length of a power cord with RJ-45 connector is 30 cm

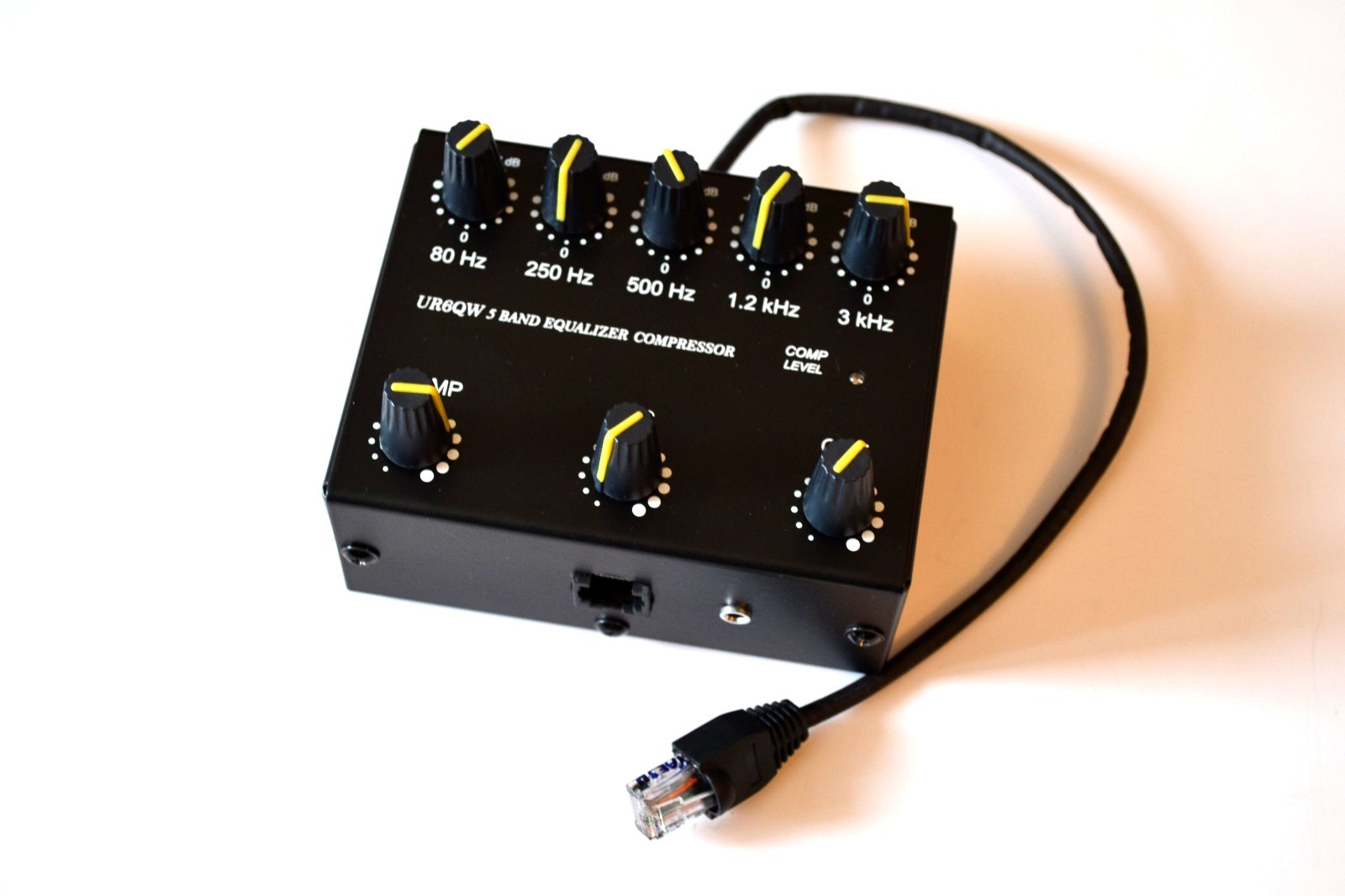

*The size of knobs and color pointer can slightly differ from shown on photo.
