8 Band Voice Equalizer + Sound Compressor + Echo Processor + Noise Gate to the XIEGU Radios with XLR mic input.
UR6QW Reviewer EQ V.6 8band Eq/Comp/Gate with shutdown and XLR input – YouTube
This unit can be used with any type of XIEGU radios with RJ-45 microphone connector. There is NO battery or power supply needed to feed this device. This unit take energy from you radio thru the mic connector.
Especially for connoisseurs of high-quality sound and ESSB, we added an XLR microphone input. Now you can be sure of the superior sound quality of your radio.
Easy to use!!! Just connect this Sound Processor to the RJ-45 mic connector on your radio and then connect the microphone to this unit and it is ready to work. Then turning the pots on its panel just get an excellent quality of your signal. To use the ratio pot in DX pile ups. Echo prosessor will make your signal special and selected.
NEW!!! – NOISE GATE eliminates background noise when you stop speaking – no more amplifier fan noise, dogs barking, kids music or traffic. This model has a fully turn-off Noise Gate function.
Technical data:
Microphone low noise amplifier with input and output level pots.
Echo prosessor with regulation of delay.
Slanted front panel for more comfortable operation with it.
Voice 8 band Equalizer with pots on 80 / 160/ 250 / 500 / 900 / 1500 / 2500 / 3200 Hz.
Strong steel case – reliable protection against external noises.
Good workig with HIGH OUTPUT POWER up to 2kWt.
Working UP DOWN control of the radio by Mic’s knobs.
Has add mic input MINI-JACK for easy use of computer typeface, HEIL microphones and etc.

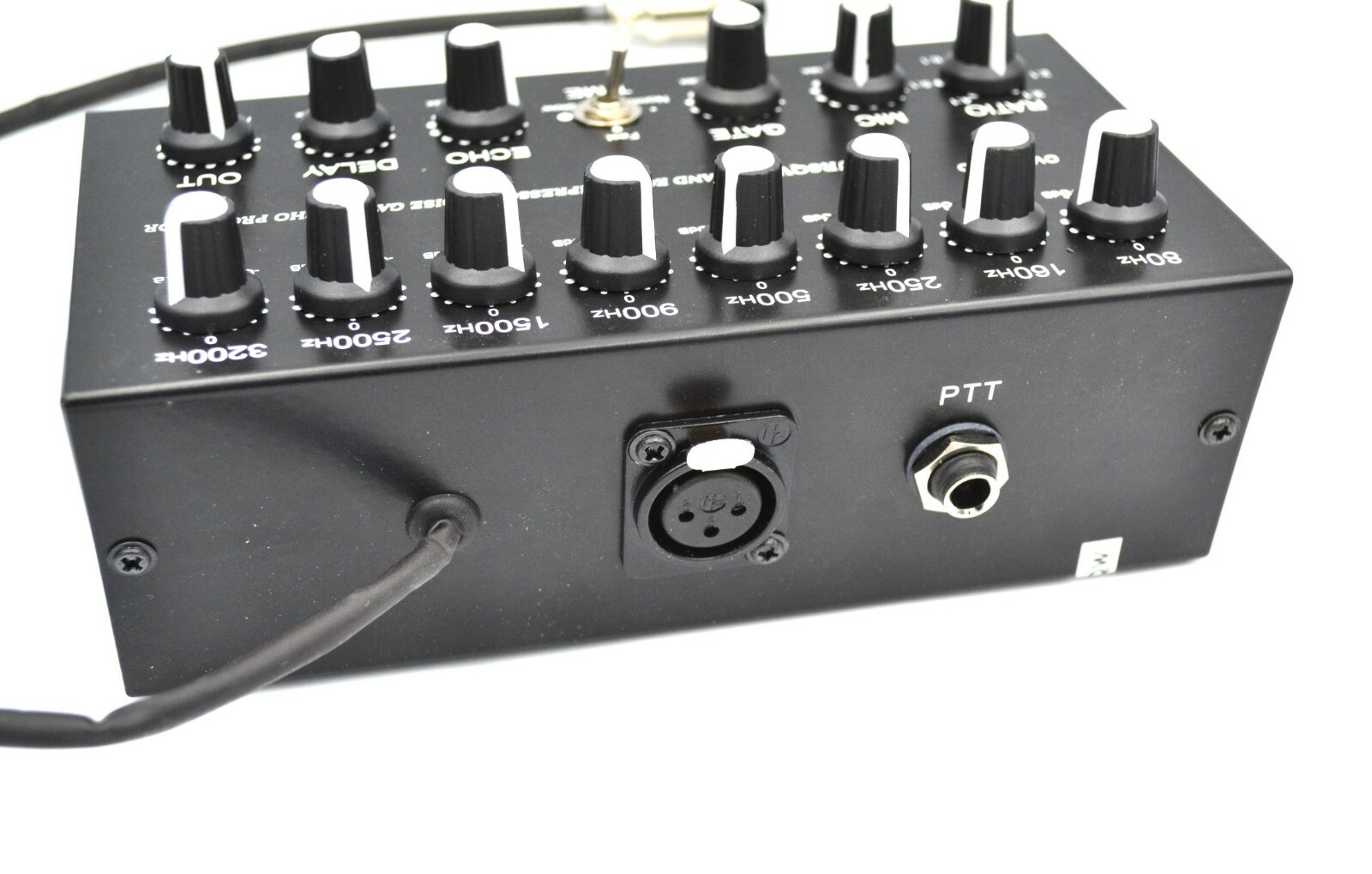

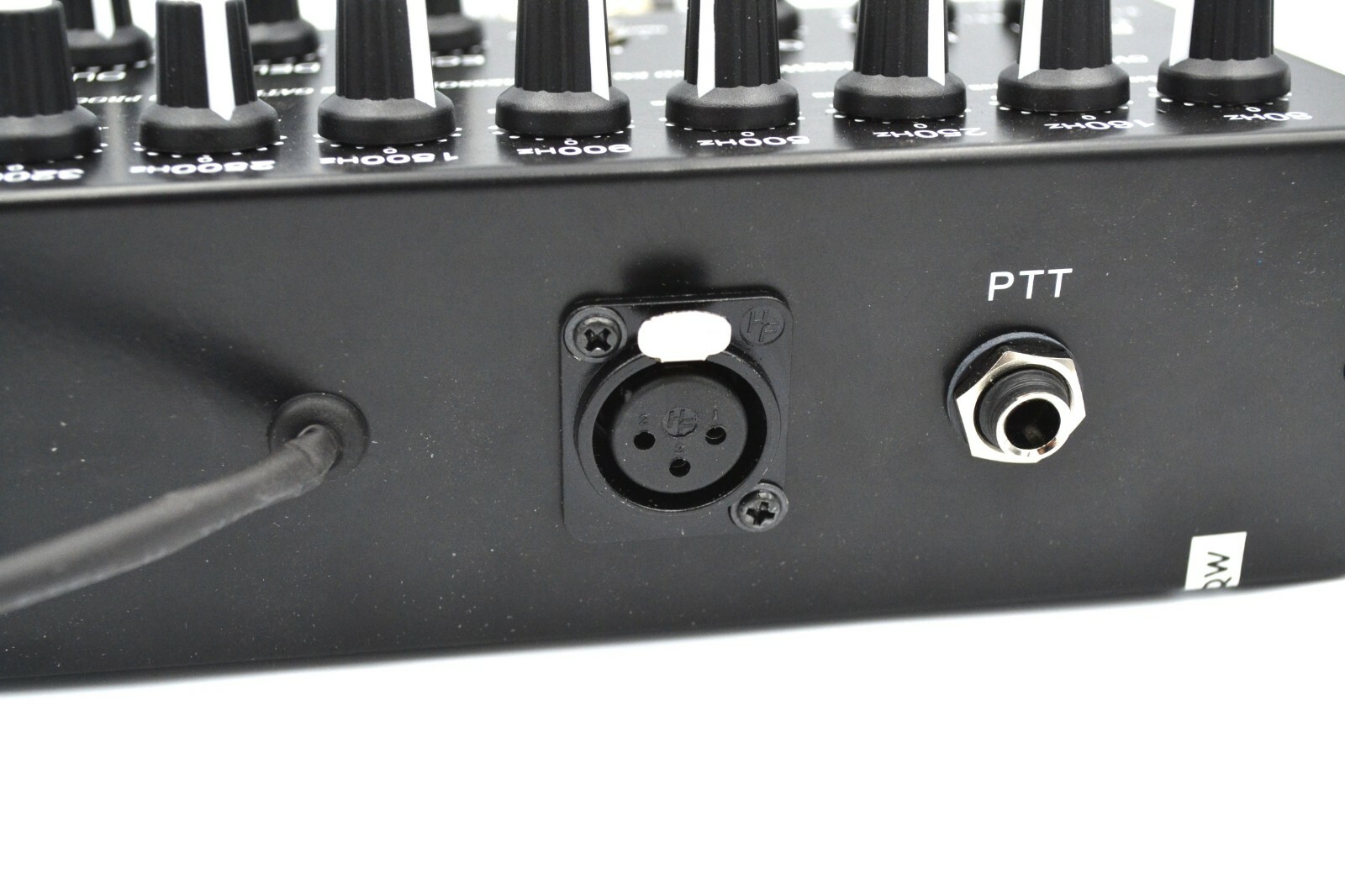

Separate mic XLR input
Special socket for footswitch – 6.3mm jack
Overload level led
Compressor ratio pot
Size 180 mm x 100 mm x 50 mm
Weight – 0.65 kg

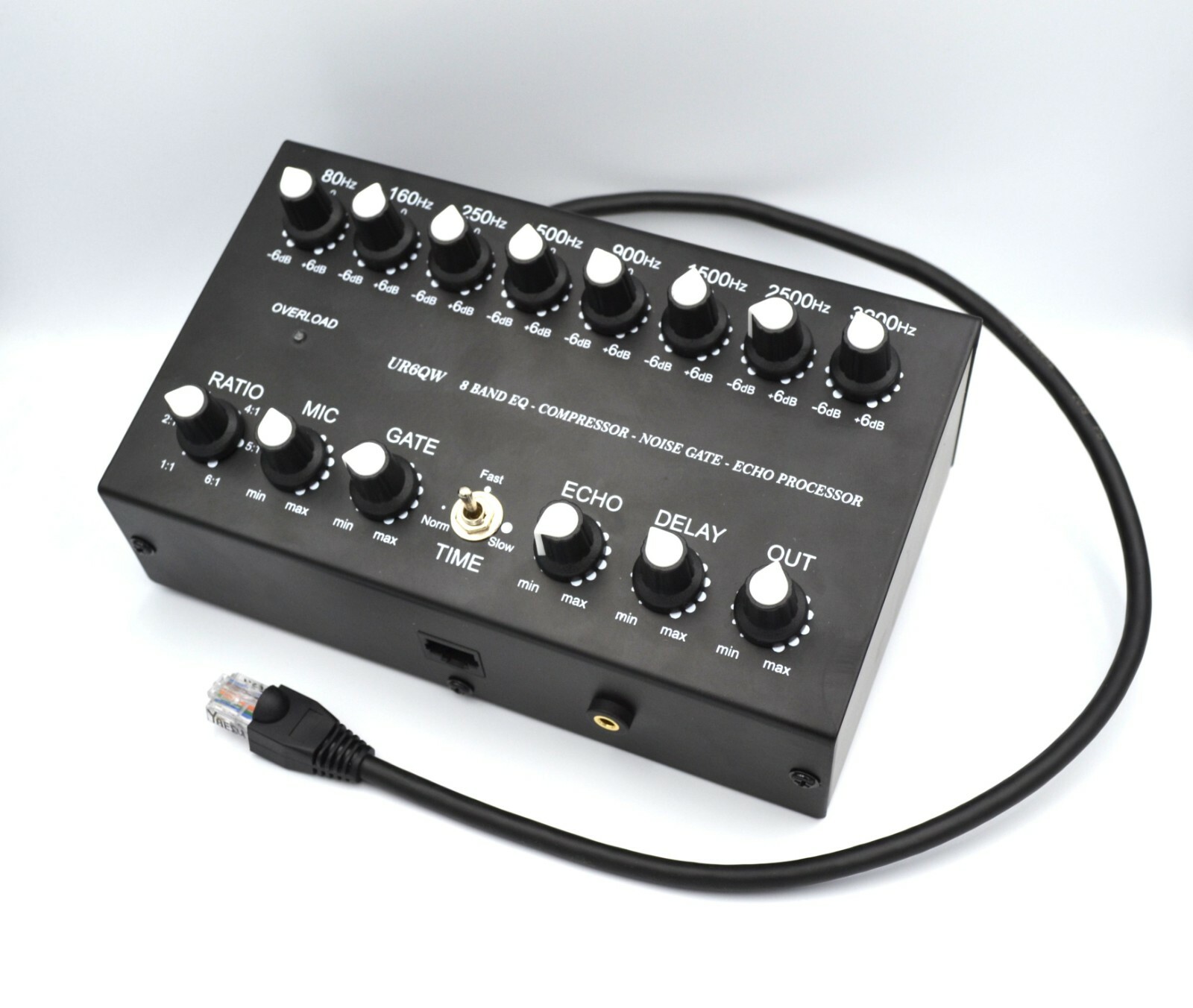

Length of a power cord with RJ-45 connector is 50 cm (20 in)
*The size of knobs and color pointer can slightly differ from shown on photo.
