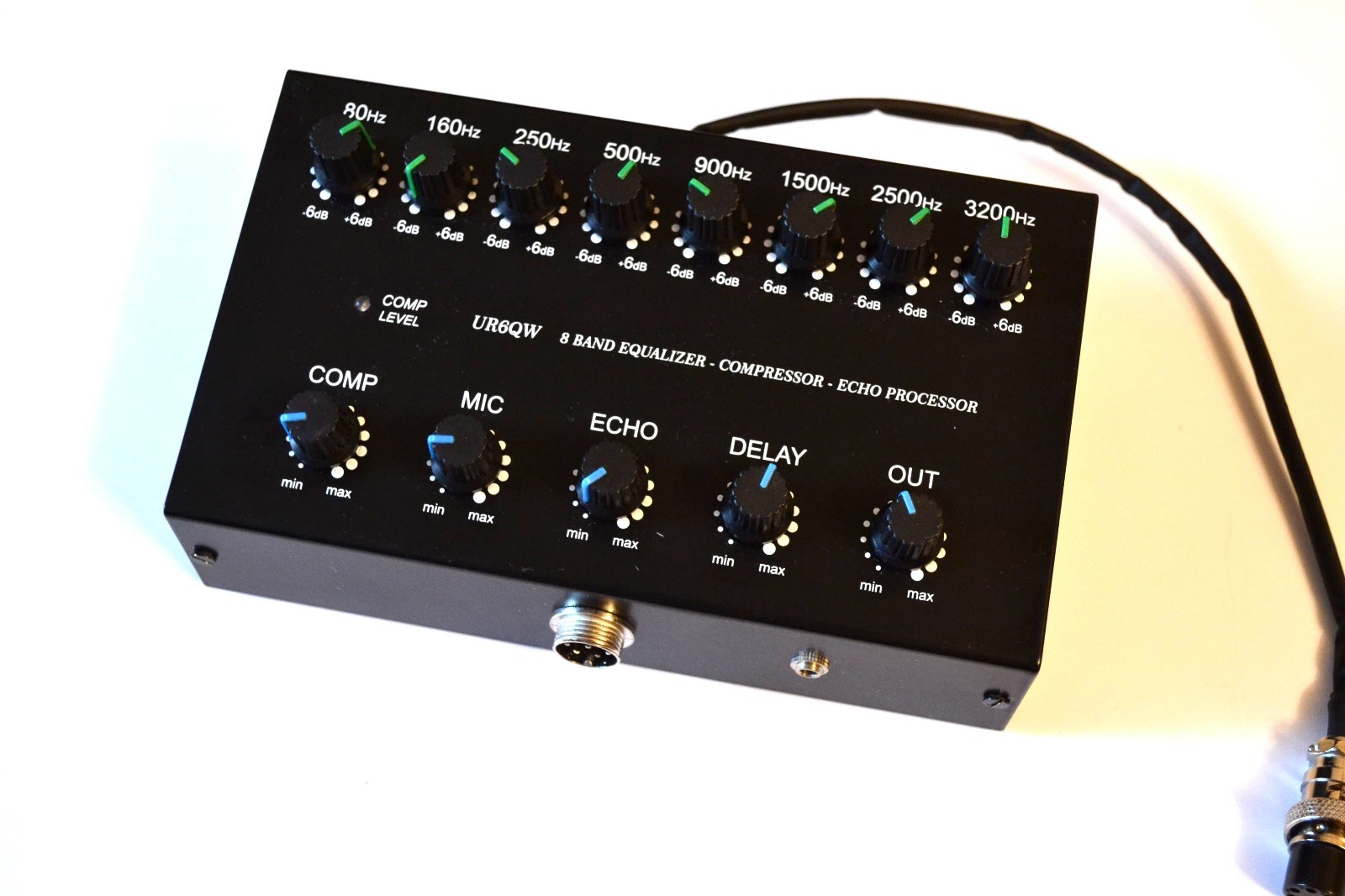

8 Band Voice Equalizer + Sound Compressor + Echo Processor to the ICOM Radios.
UR6QW 8 band Equalizer Compressor with Echo effect (EQ V.4) – YouTube
This unit can be used with any type of ICOM radios with 8 pin microphone connector. There is NO battery or power supply needed to feed this device. This unit take energy from you radio thru the mic connector.
Easy to use!!! Just connect this Sound Processor to the 8 pin mic connector on your radio and then connect the standard ICOM microphone to this unit and it is ready to work. Then turning the pots on its panel just get an excellent quality of your signal. To use the compressor pot in DX pile ups. Echo prosessor will make your signal special and selected.
Technical data:

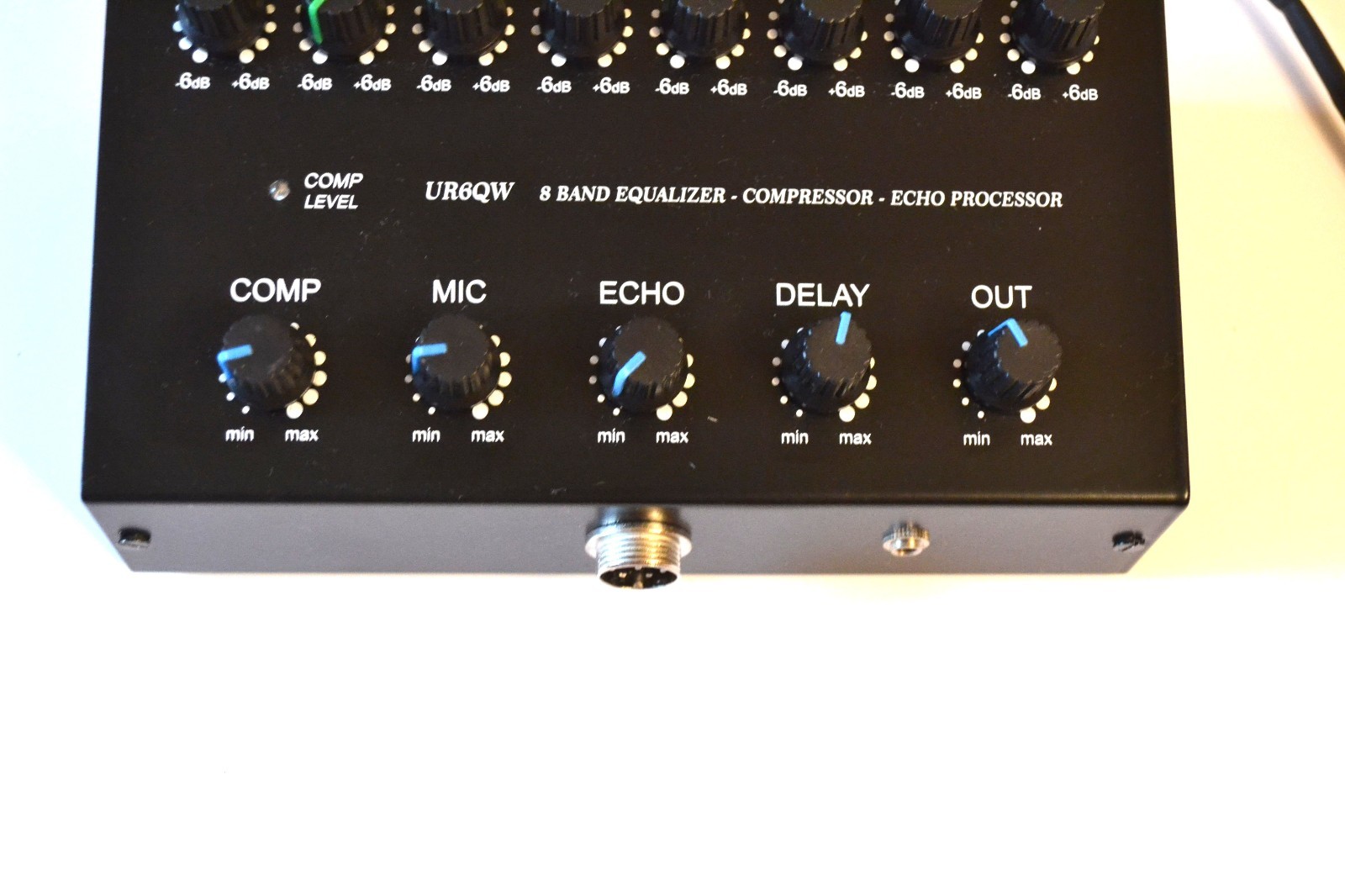

Microphone low noise amplifier with input and output level pots.
Echo prosessor with regulation of delay.

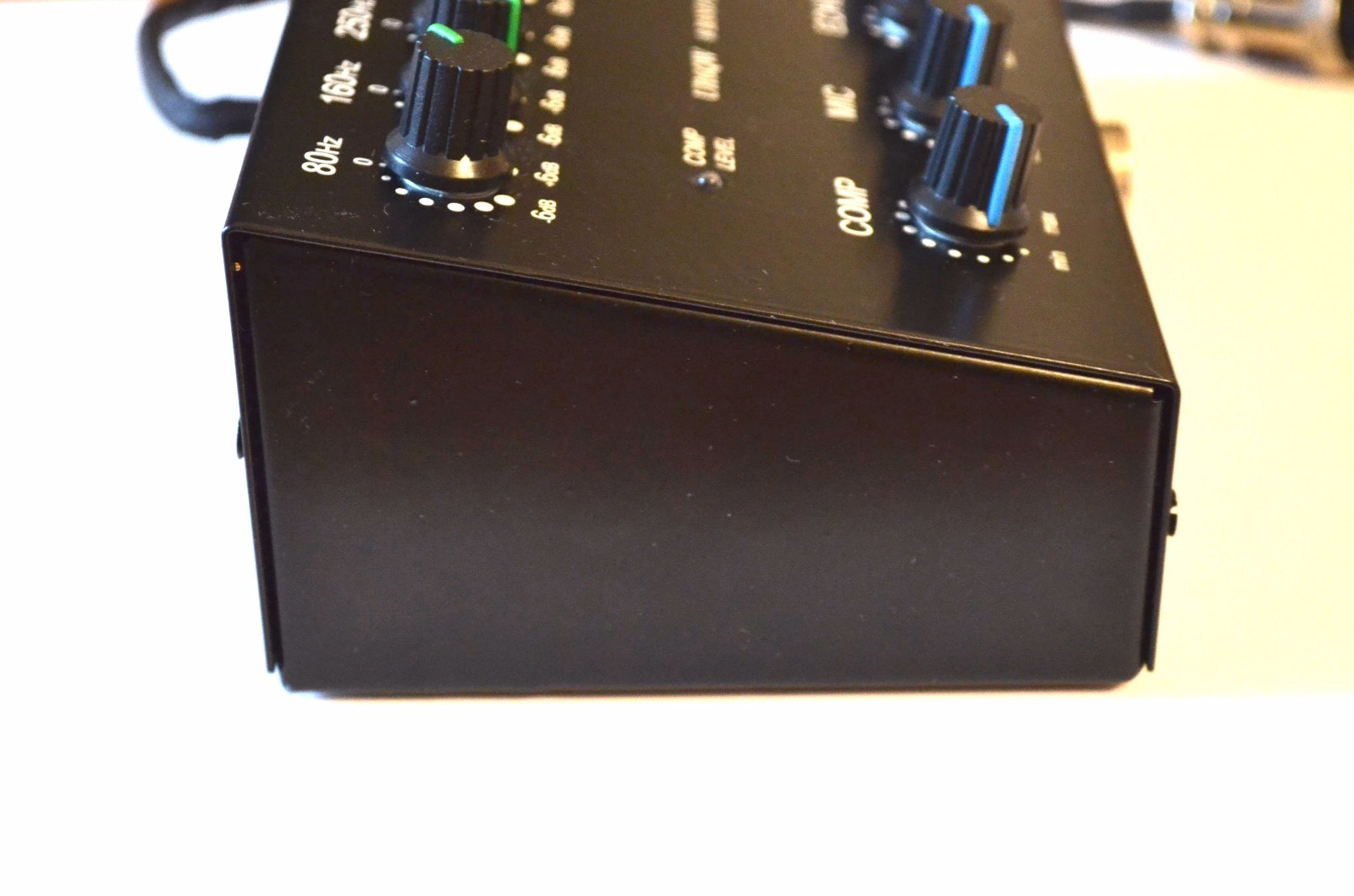

Slanted front panel for more comfortable operation with it.

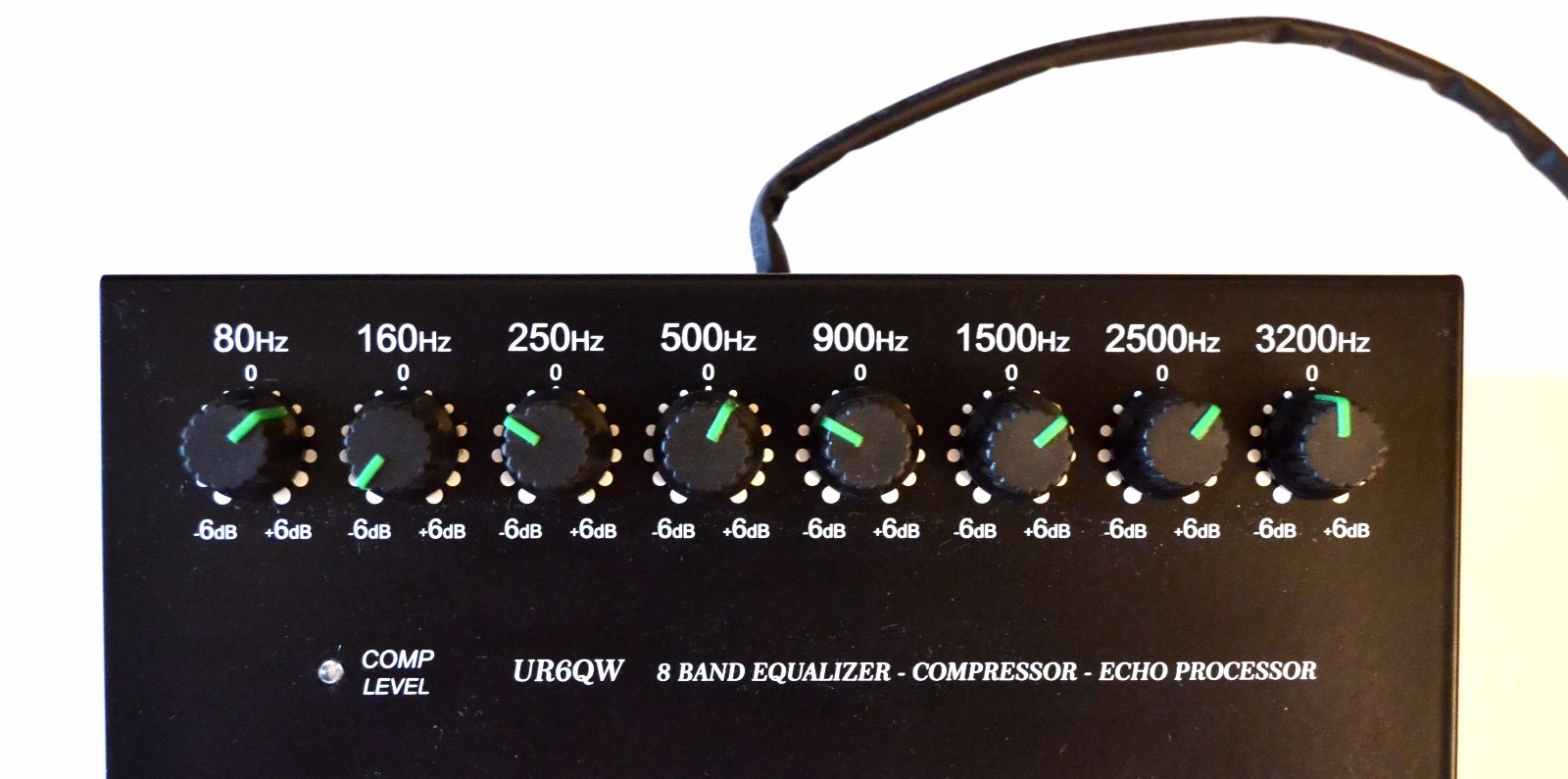

Voice 8 band Equalizer with pots on 80 / 160/ 250 / 500 / 900 / 1500 / 2500 / 3200 Hz.
Strong steel case – reliable protection against external noises.
Good workig with HIGH OUTPUT POWER up to 2kWt.
Working UP DOWN control of the radio by Mic’s knobs.

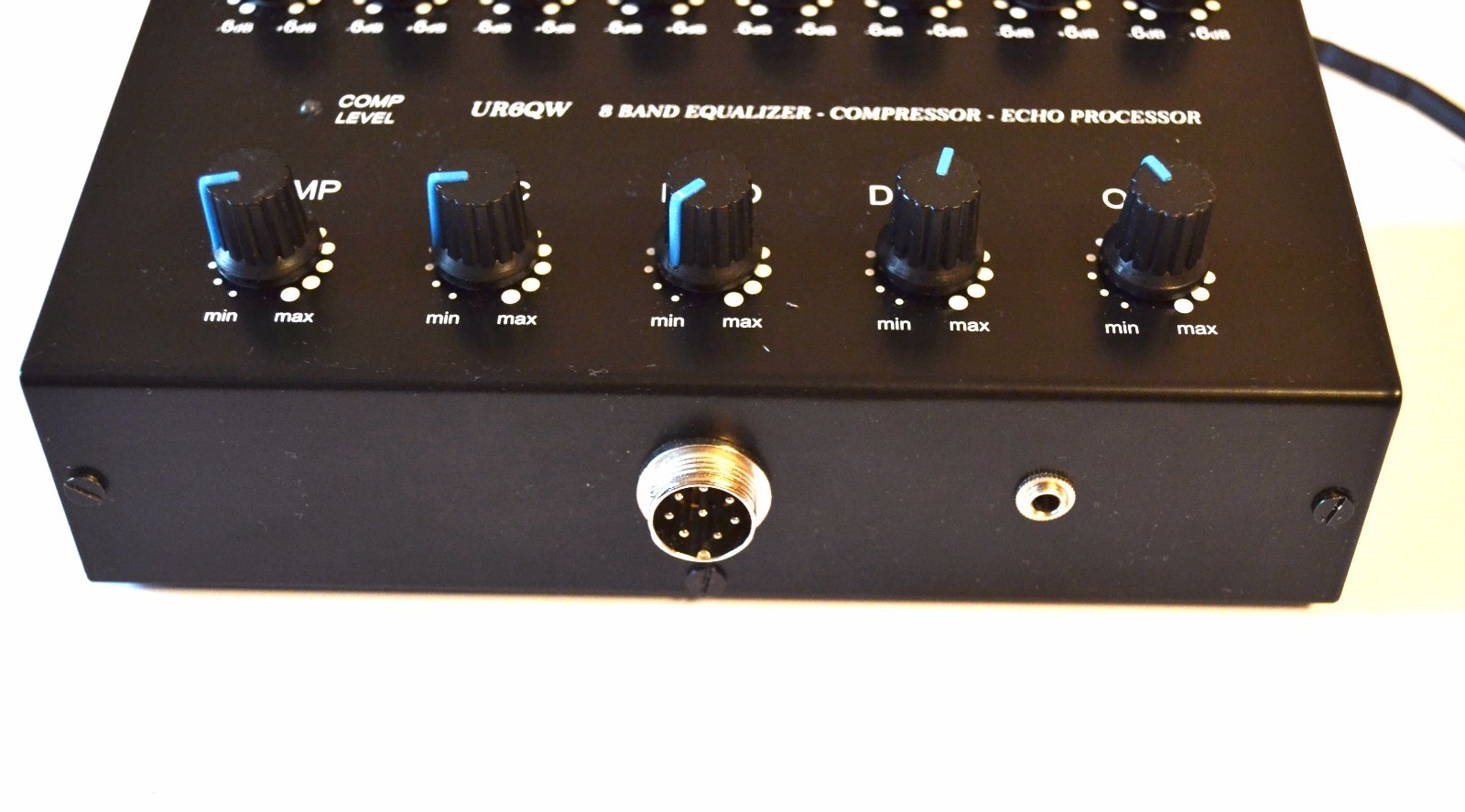

Has add mic input MINI-JACK for easy use of computer typeface, HEIL microphones and etc.
Compression level led
Microphone Compressor level pot
Size 180 mm x 100 mm x 50 mm
Weight – 0.63 kg
Length of a power cord with 8 pin connector is 30 cm
*The size of knobs and color pointer can slightly differ from shown on photo.
