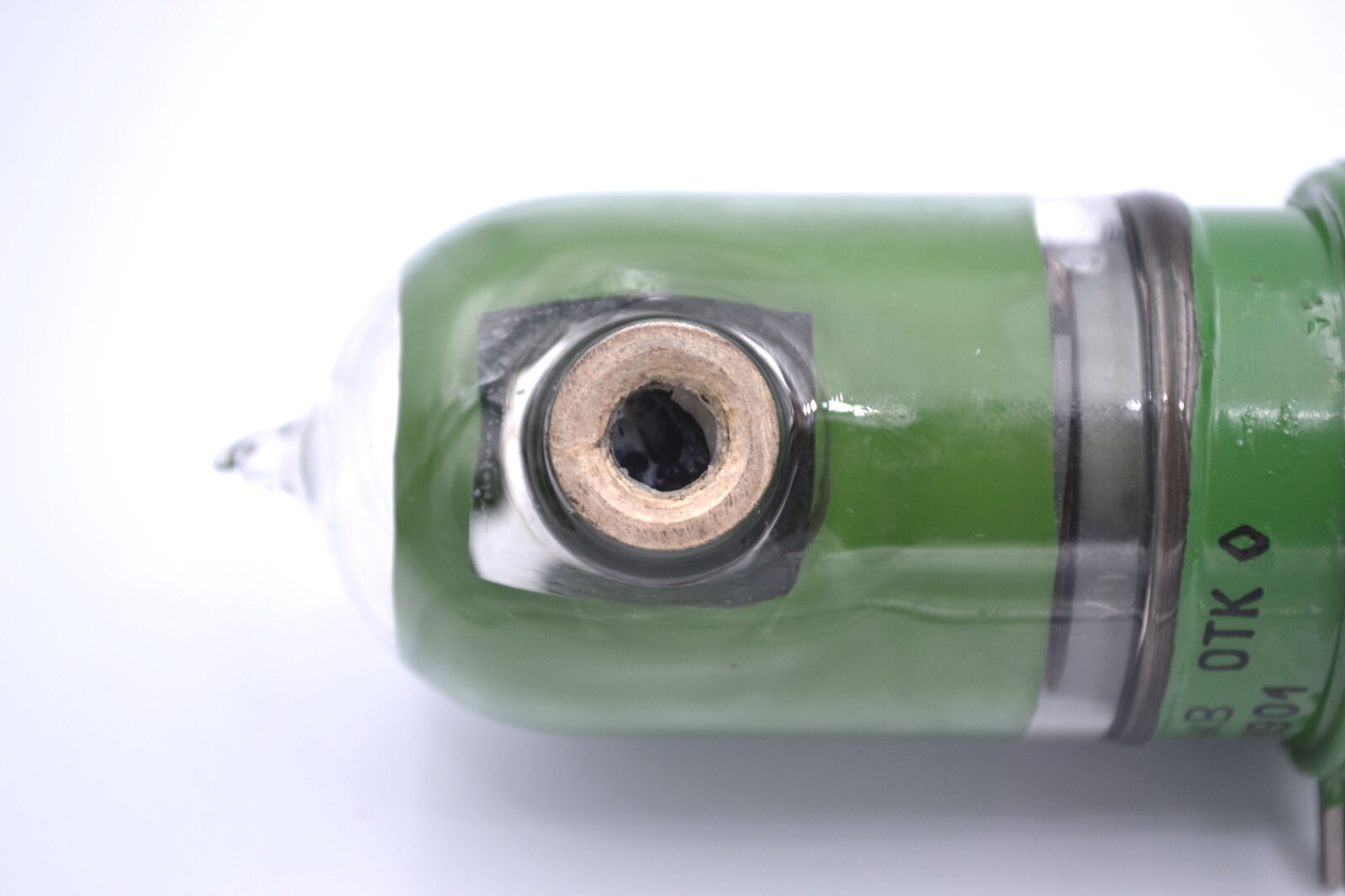

V2V-1V Vacuum relay 50A 5kW
Control voltage ON – >18 V DC
Control voltage OFF – (3 … 4) V DC
Nominal working voltage – 27 V
Operating voltage at 30 MHz – <10 kV
Rated current at 30 MHz – <25 A
Operating voltage at 3 MHz – <10 kV
Rated current at 3 MHz – <35 A
Rated DC current – <50 A
Switching time – <15 ms
Time off – <5 ms
Direct resistance of contacts – 0.015 Ohm
Resistance of insulation – 500 MOhm
Coil resistance – 200 Ohm
Current coil for ON – 60 … 140 mA
Maximum voltage at 3 MHz – <10 kV
Maximum current – <35 A
Maximum frequency – <30 MHz
Maximum switchable power at 30 MHz – 5.0 kW
Temperature of work C – -60 … +100

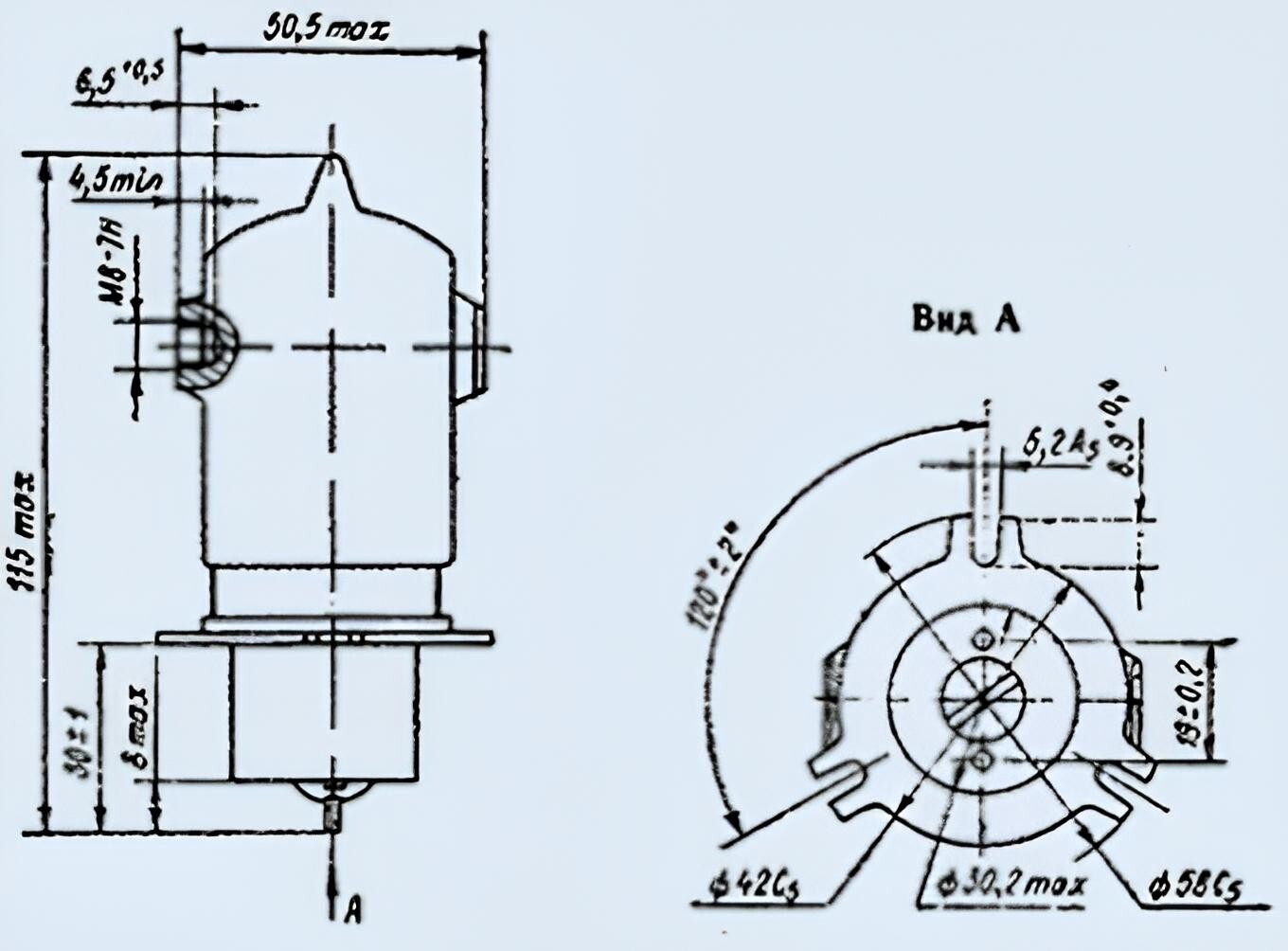

Diameter – 58 mm (2,28 in)
Length – 115 mm (4,52 in)
Weight – 265 g
Operating Position – any
